Microdisplay 0.23 inch Micro Oled display 640x400 For AR VR

Category： MICRODISPLAY
Size:0.23 inch OLED Display
Resolution:640(RGB)X400
Brightness:800 cd/m2
Interface: parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input
INQUIRY EMAIL

0.23 inch 800 nits Micro OLED Display 640x400 for Augmented Reality Headsets

Product Details

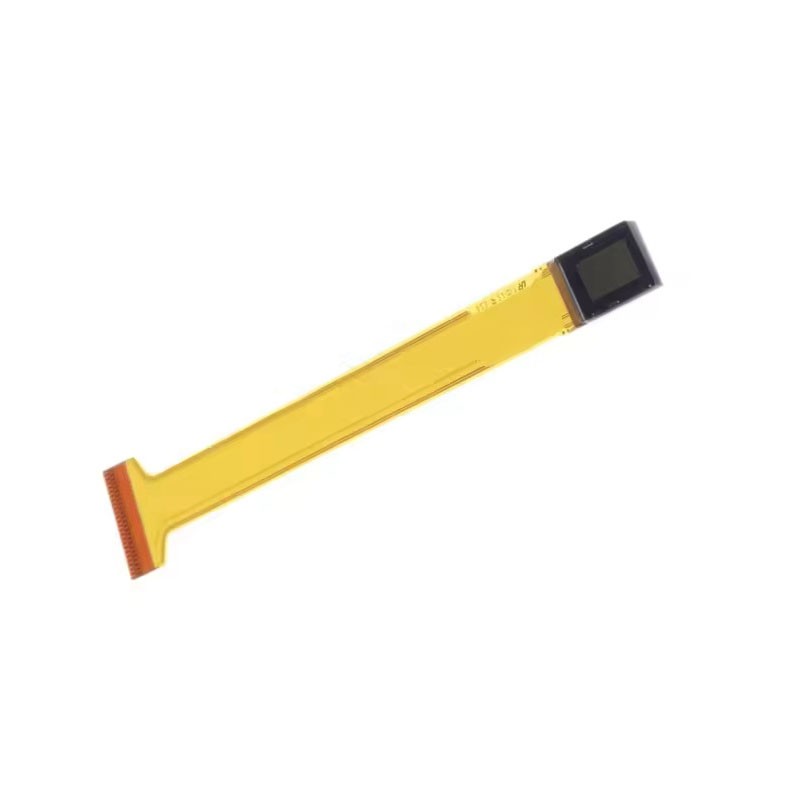

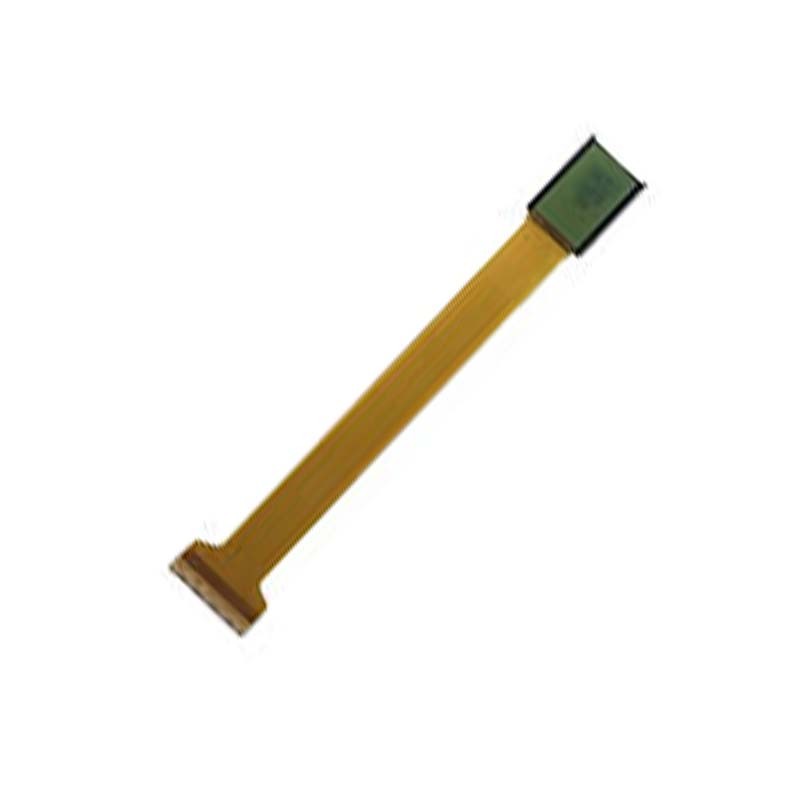

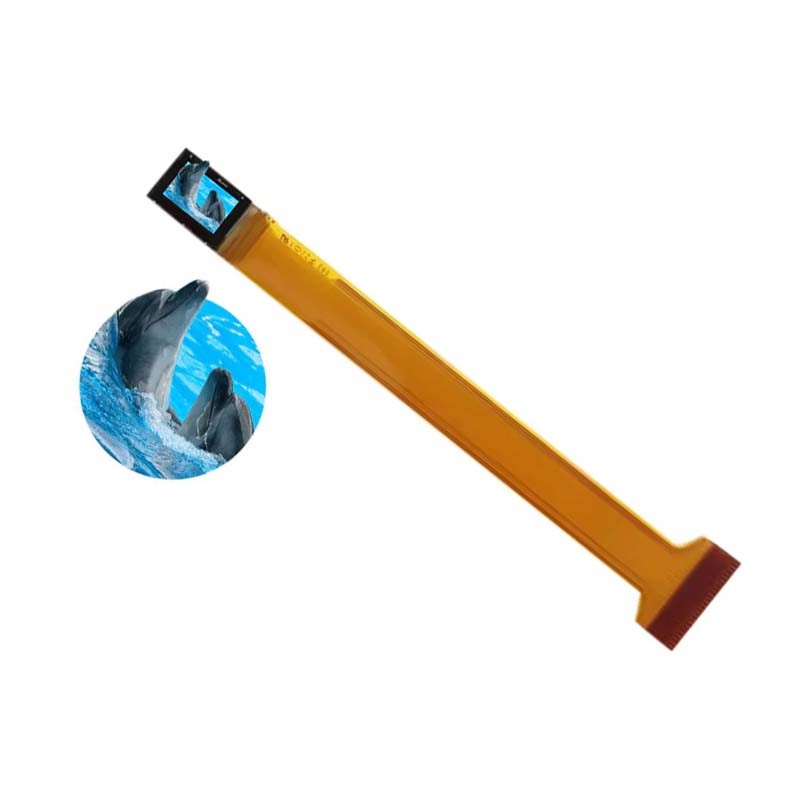

This Micro oled display is a 0.23 inch micro Si OLED display based on single-crystal silicon transistors, this Micro display offers high resolution of 640X400 pixels and high luminance of 800 nits, which is very popular used in the field of VR AR; to realize smaller size, lighter in weight, higher definition Thinner in the type, this 0.68 micro screen incorporates panel driver and logic driver, make this Microoled ideal to be used multiple applications such as HMDs (head-mounted displays), VR (virtual reality) and AR(augmented reality).

0.23 inch Micro oled display 640X400 Mechanical parameter

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.23"	inch
Resolution	*640(RGB)400**	Pixels
Display Color	Full color
Pin No	51P	cd/m2
Brightness	800
Interface Type	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

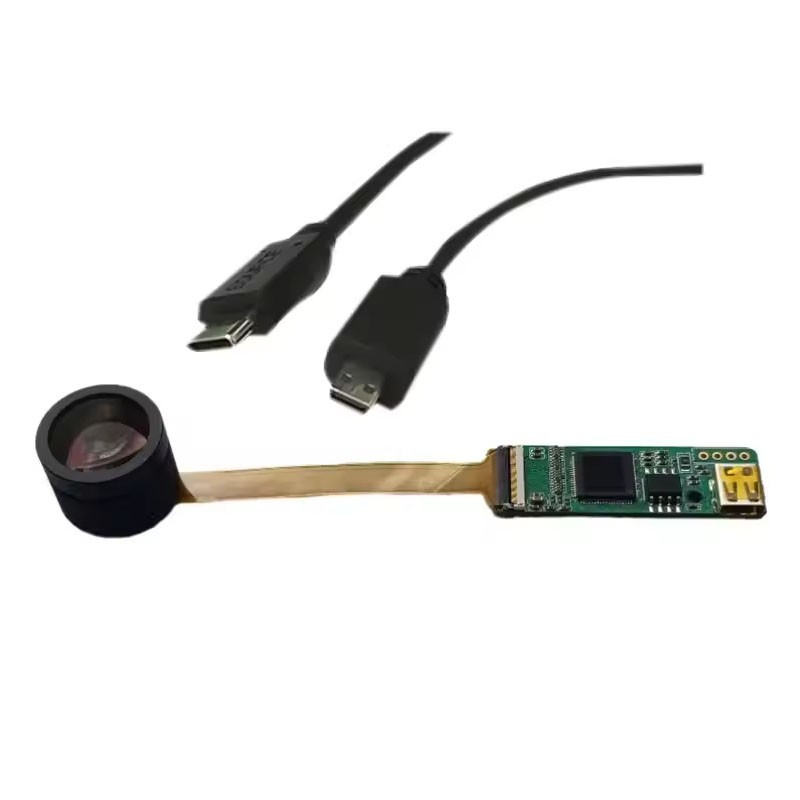

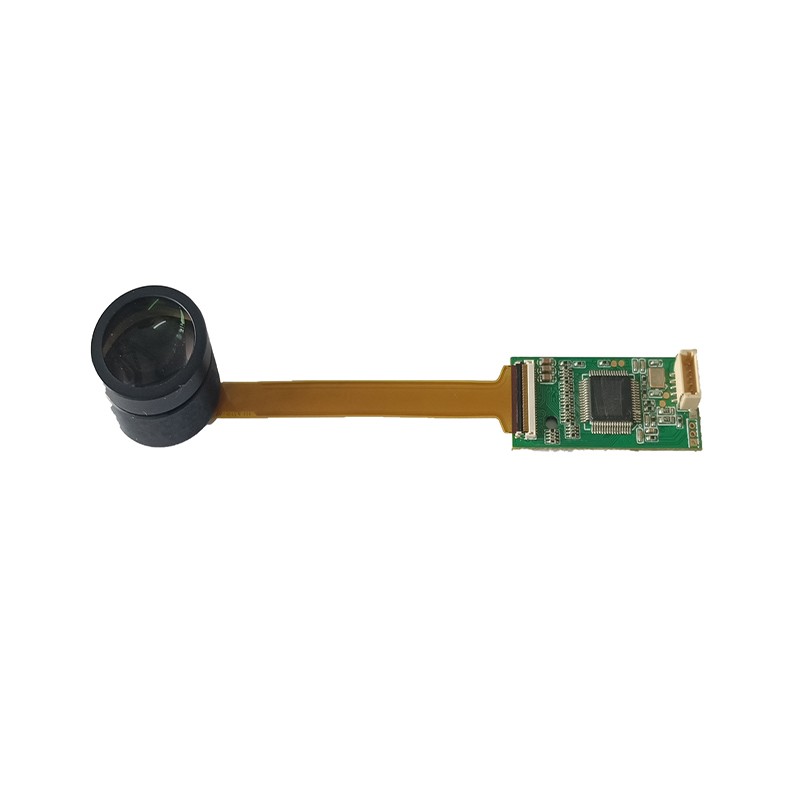

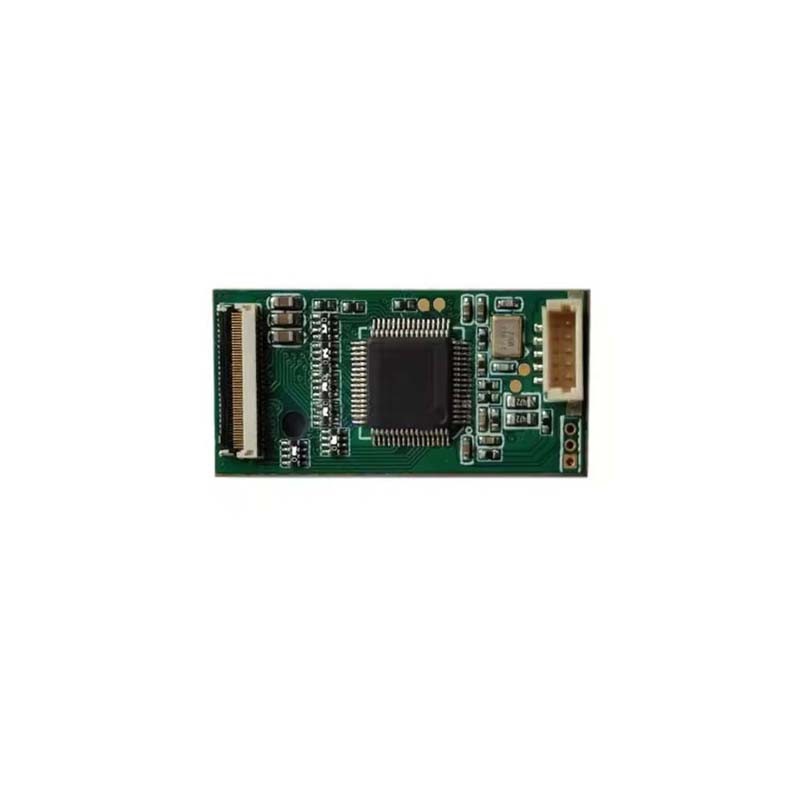

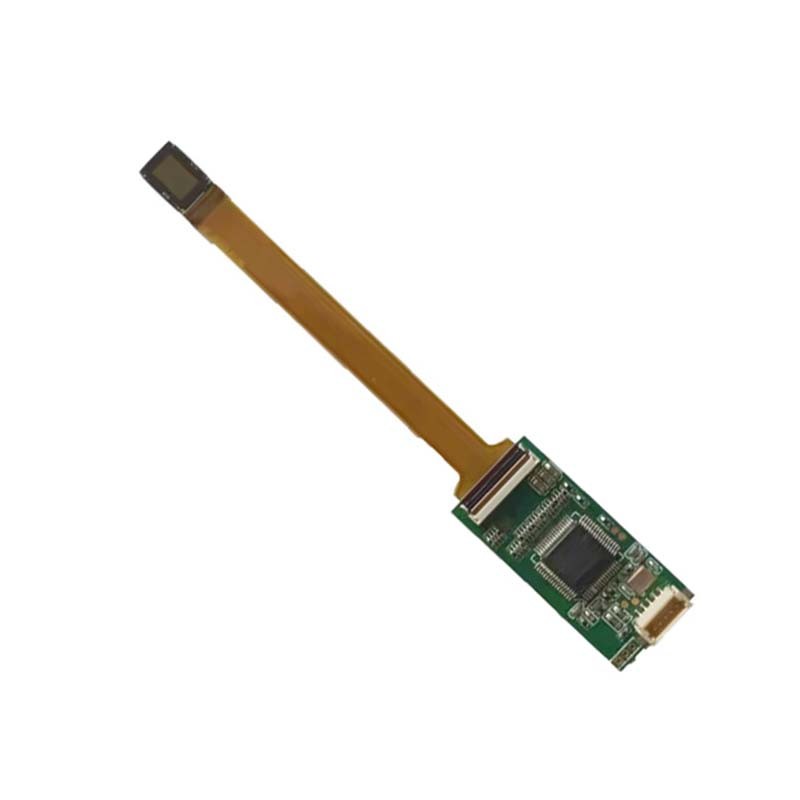

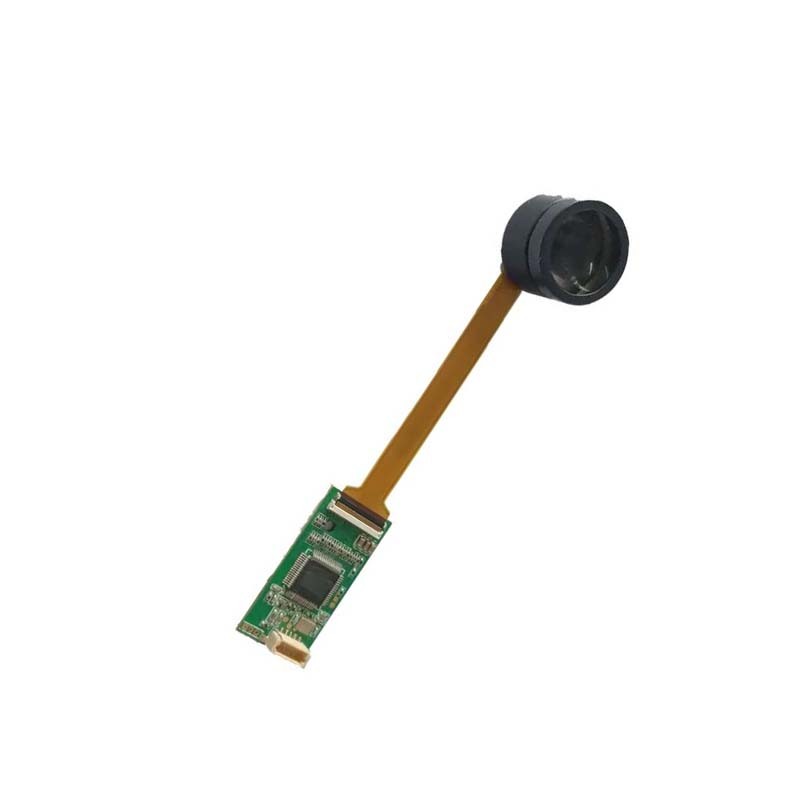

Driver Board Solution	HDMI PORT/CVBS/AV Board

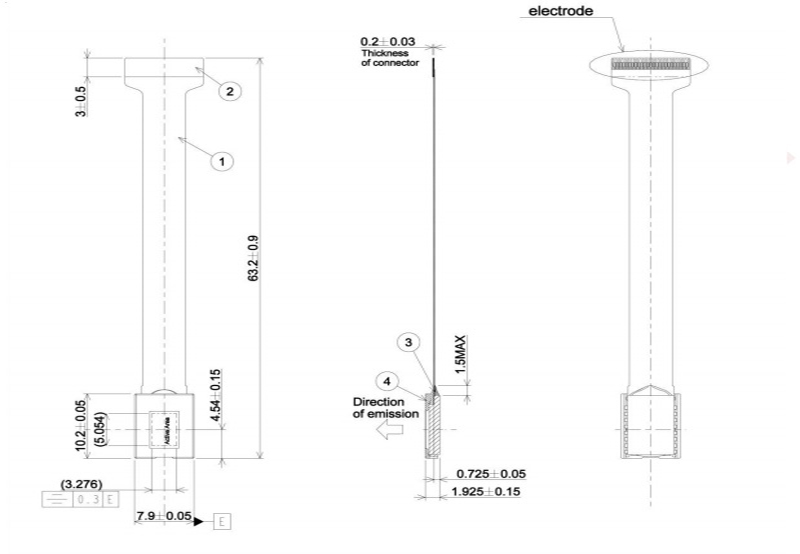

Panel Size	15.6 x 13.6 x 0.2	(mm)
Active Area	8.143x 6.146	(mm)
Frame Rate	60Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	-10℃~70℃
Storage Temperature	-30℃~80℃

0.23 inch Micro oledos display Mechanical features

◆ Small-size, high-definition-type 0.23 nHD+ display dots 640 (RGB) × 400 = 0.77M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power-saving function
◆ Up/down and/or right/left inverse display function

◆ Orbit supported
