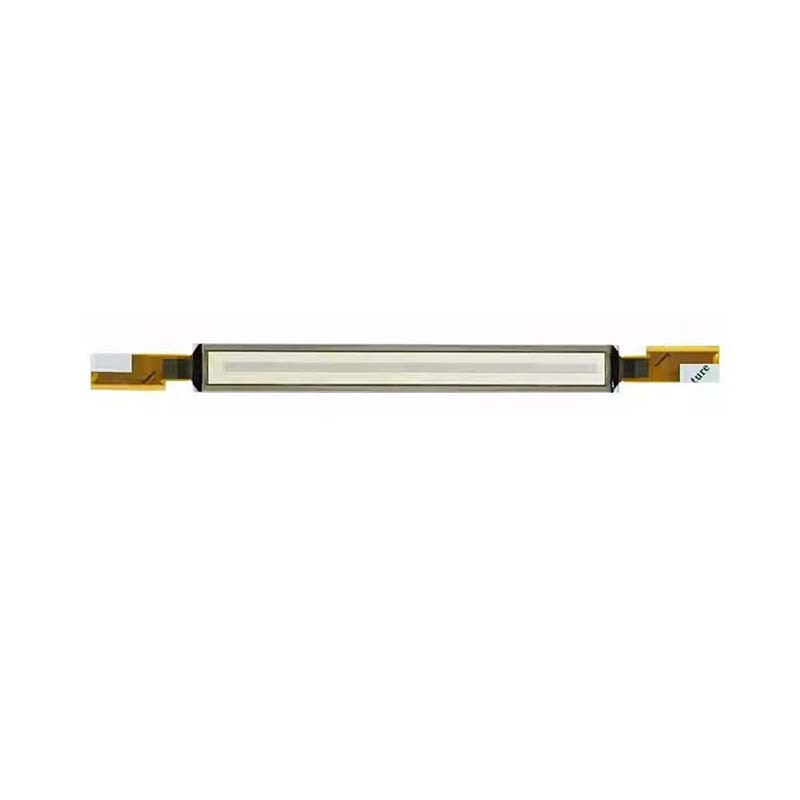

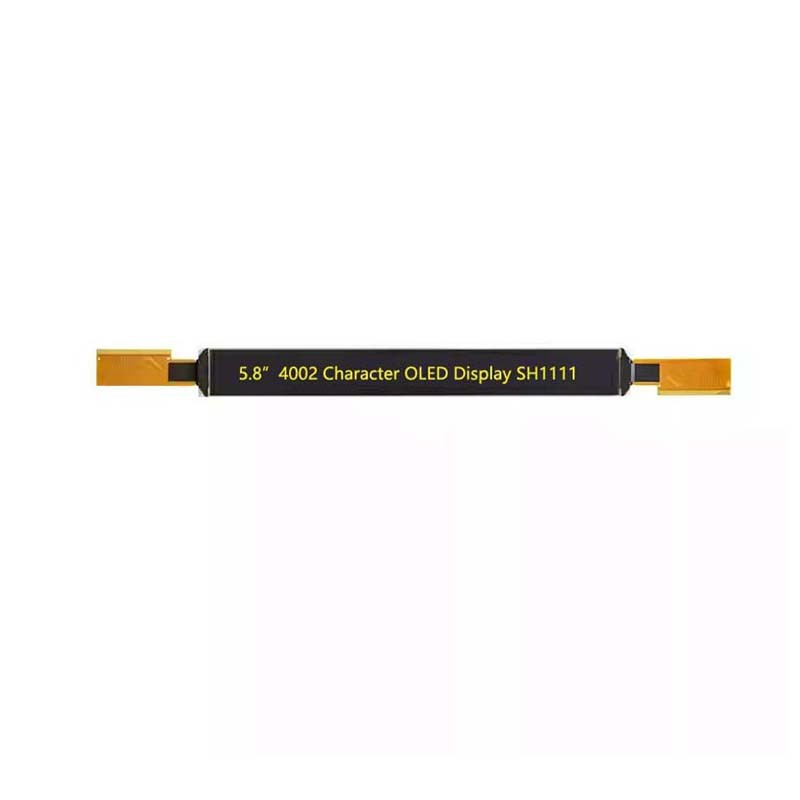

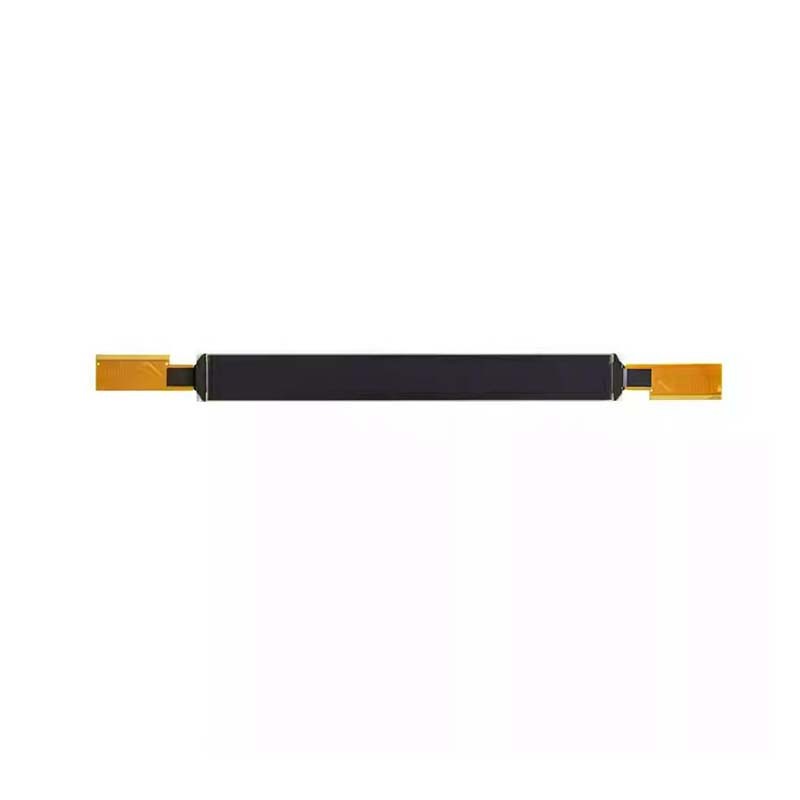

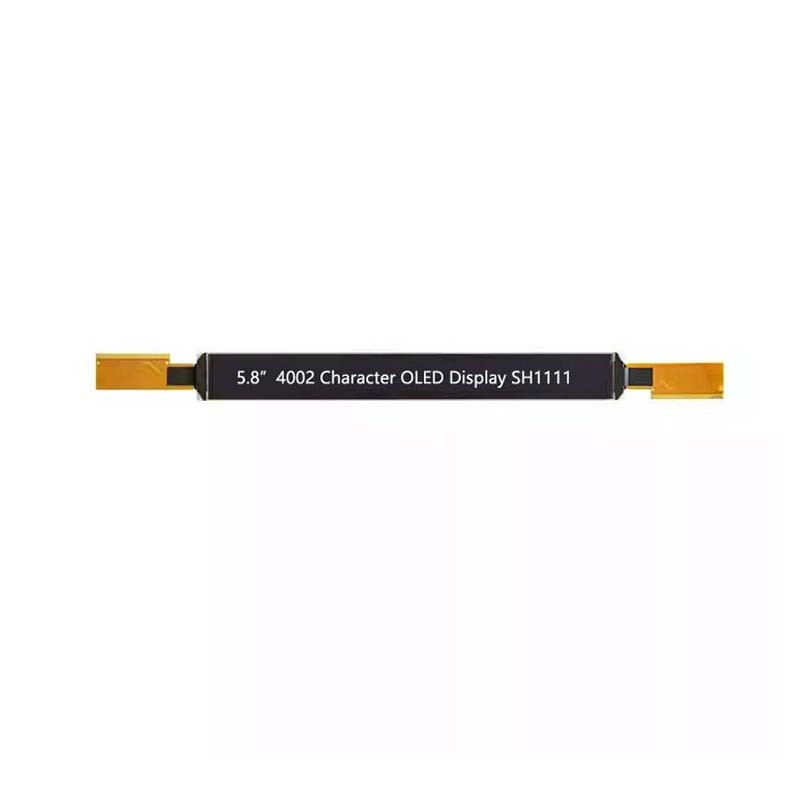

5.80 inch 40X2 character oled display KS0066 /SH1111 II2C/SPI white/blue/yellow

Category： OLED CHARACTER
Size:5.8 inch OLED Character
Resolution:40 Characters ( 5 × 8 ) × 2 Lines
Chip lC: KS0066 /SH1111
Interface: 4-/8-bit 68XX/80XX Parallel, SPI, I2C
INQUIRY EMAIL

Product Details

5.80 inch monochrome character oled display module which is made with 40X2 characters. This mono 40X2 character oled screen sizes is 5.80 inch in diagonal. This 5.80 inch oled display is passive matrix micro OLED display with mono white/blue/Yellow 3 colors options. The driver IC is KS0066 /SH1111, 3.67 oled screen communicates via 4-/8-bit 68XX/80XX Parallel, SPI, I2C interface, using 3.3V power supply. The 40X2 oled character screen is a COG structure OLED panel, as the oled cmakes its own light without backlight is required, So the power required to run the OLED is low, and is why the display has such high contrast, extremely wide viewing angle and operating temperature. OLED 40X2 module can be operating at temperatures from -40℃ to +80℃, storage temperatures is from -40℃ to +85℃. The oled 40X2 character 5.80" is commonly used for smart watch, MP3, function cellphone, portable health device and many others application.

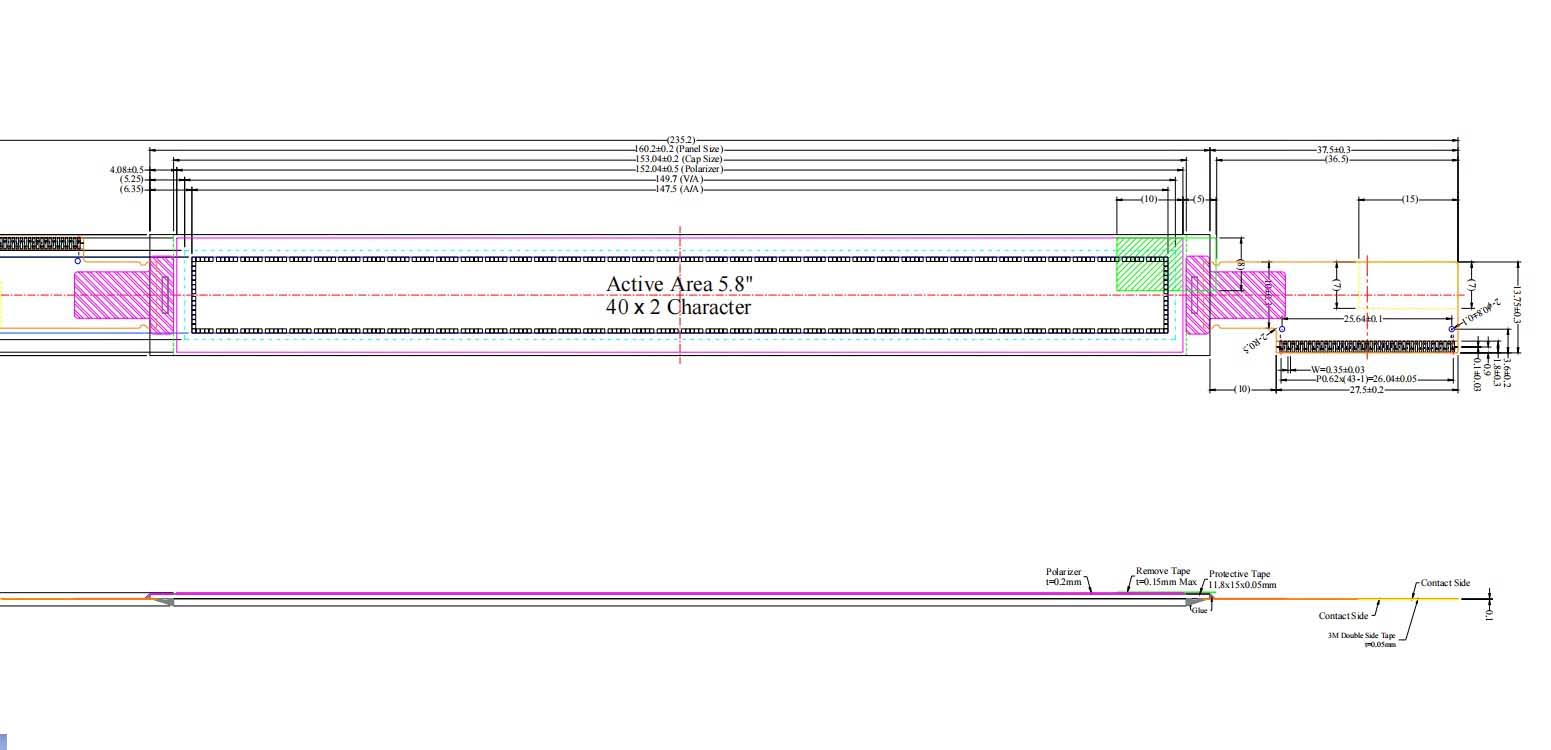

5.80 inch 40X2 character oled display Mechanical parameter

Features	Specification	Unit
Display Type	Passive Matrix
Display Size(Diagonal)	5.8 "	inch
Number of Characters	40 Characters ( 5 × 8 ) × 2 Lines	Pixels
Display Color	Monochrome(white/blue/yellow)
Pin No	43 P	cd/m2
structure	COG
Interface Type	4-/8-bit 68XX/80XX Parallel, SPI, I2C
Driver ic	KS0066 /(SH1111)
Panel Size	160.20 × 18.30 × 2.00 (mm) including “Anti-Glare” Polarizer	(mm)
Active Area	147.50 × 11.50	(mm)
Character Pitch	3.70 × 5.95	(mm)
Character Size	3.20 × 5.55	(mm)
Pixel Pitch	0.65 × 0.70	(mm)
Pixel Size	0.60 × 0.65	(mm)
Operation Temperature	-40~85℃
Storage Temperature	-40~90℃
Weight	12.2	g

5.80 inch 40X2 character oled display Mechanical features

Compatible with Character LCD Display
Multiple Languages Support
Applicable to Various Character Display Module Development
High Contrast Ratio (10,000:1)
Free Viewing Angle
Fast Response Time (≤ 10μs)
Thinner & Lighter & Durable
Wide Temperature Range (-40°C~85°C)
No need of backlight, self emitting
Apply to most products from any area.
Trend of Displays
Leading the green vision

Product Application:

Smart phones
smart watch
portable health device
intelligent on-board camera
real-time display pictures
battery management equipment
IPC controller
MP3/MP4 player
mobile phone function
portable medical equipment, game, etc.
