Product Details

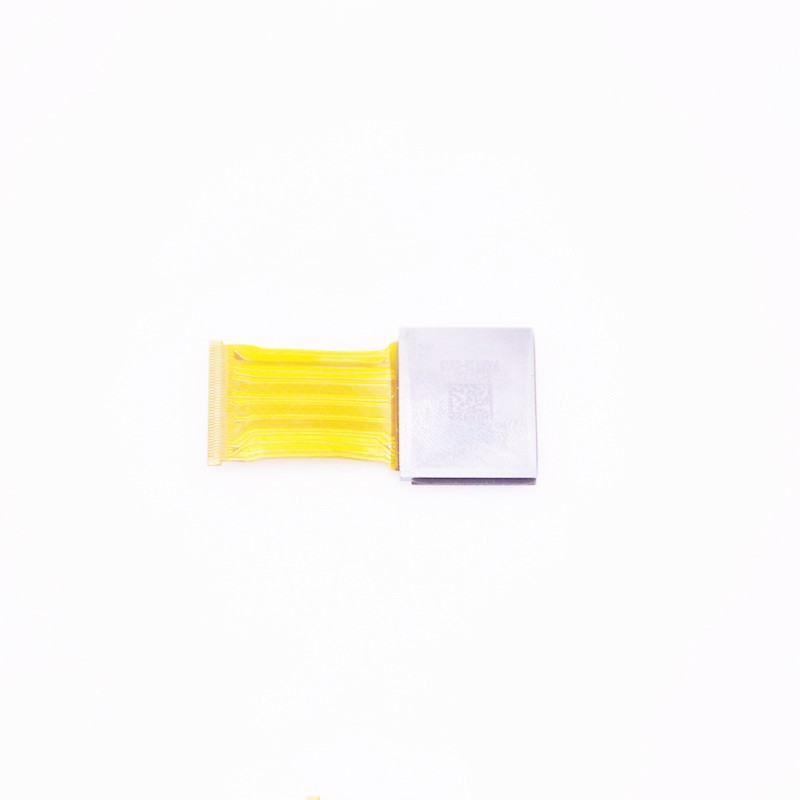

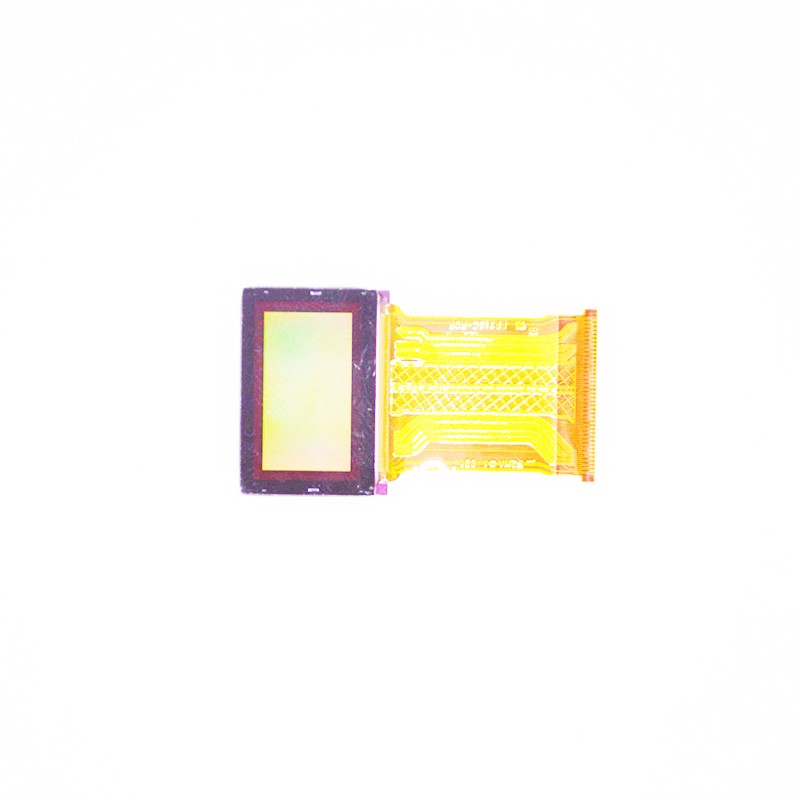

The 0.71" micro oled display is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

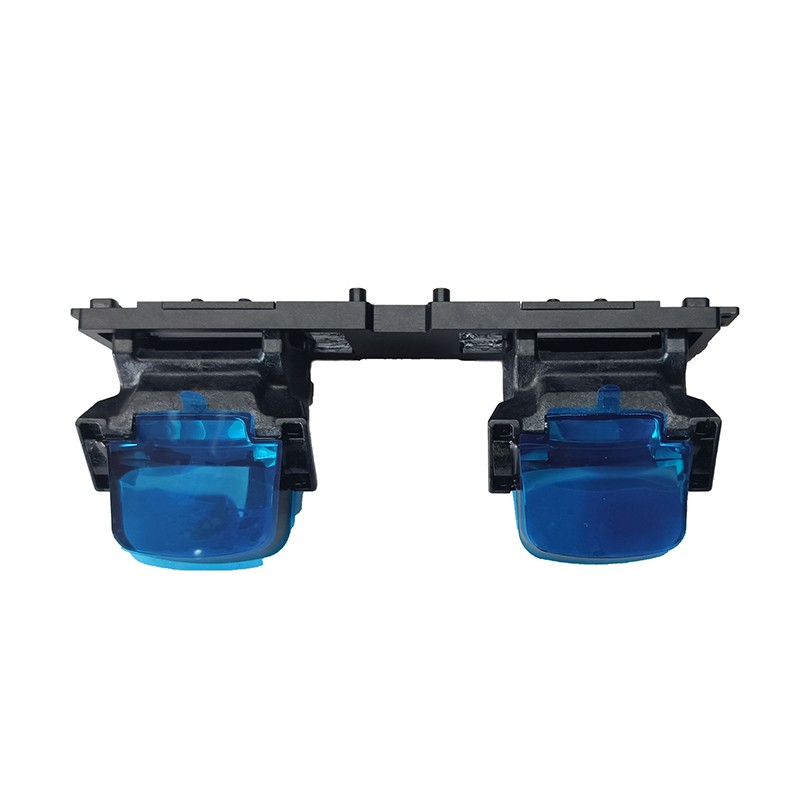

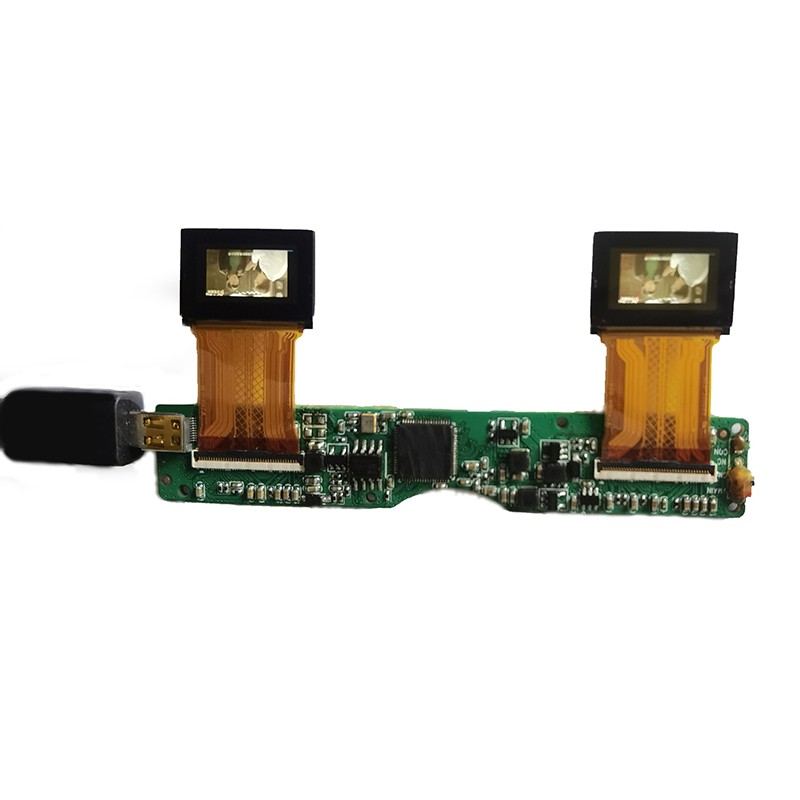

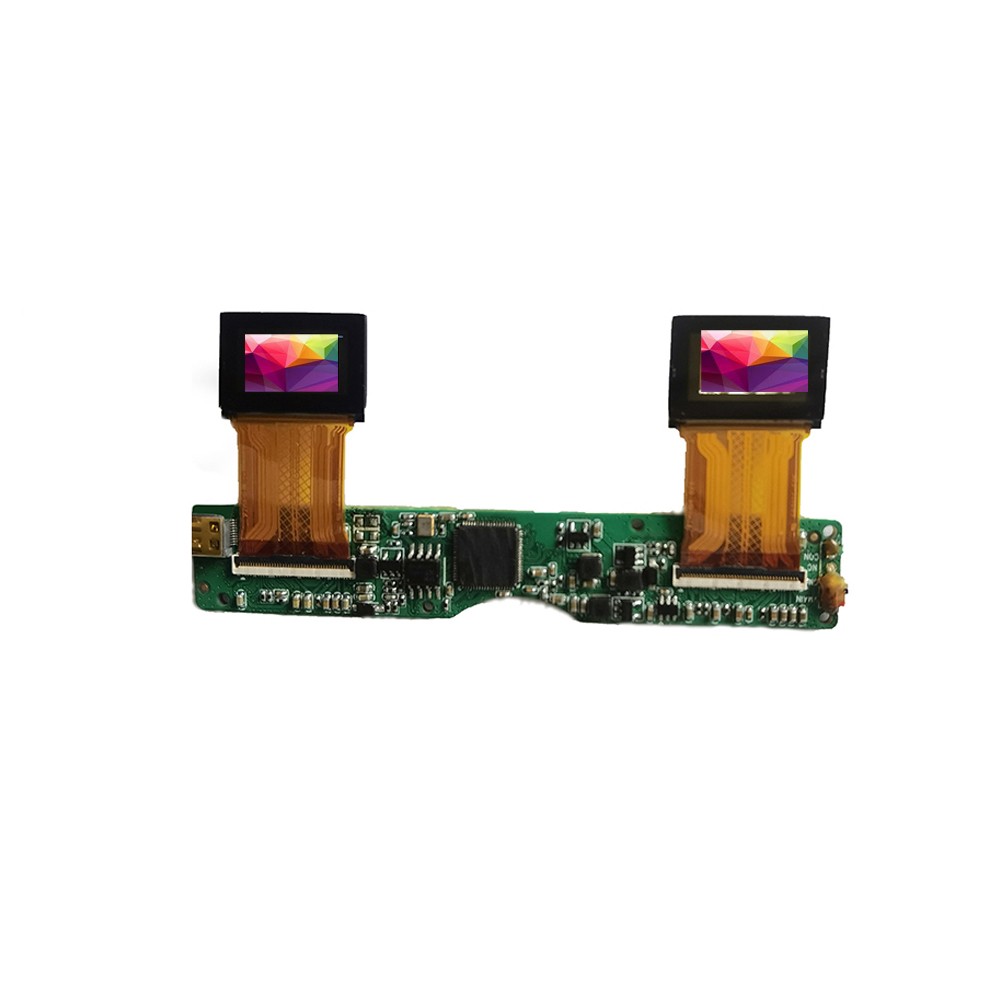

This MicroOLED is for AR(Augmented Reality) and VR(Virtual Reality), Gunsight, Nightvision, and Telescopic Sight; and it  is available with the Driver Board that can run Binocular displays and prisms

0.71"1080P Micro oled display Parameter

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.7"	inch
Resolution	1920(RGB)*1080	Pixels
Display Color	Full color
Pin No	81P	cd/m2
Brightness	3000
Interface Type	LVDS
Driver Board Solution	HDMI PORT
Panel Size	24.24(W)×15.62(H) ×1.54(D)	(mm)
Active Area	15.8x8.99	(mm)
Frame Rate	60Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	0℃~70℃
Storage Temperature	-30℃~80℃

Applications Areas:

◆ EVF (electronic viewfinders) for consumer cameras;
◆ AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
◆ Drones and FPV
◆ All types of scopes
◆ Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
◆ Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
◆ head mounted displays
◆ very small monitors,etc

0.71" Micro Display Screen Features:

◆ Small size and high resolution type 0.70 display
◆ Effective dots: 1920 (RGB)×1080 = 6.22 M dots
◆ Ultra high contrast
◆ Wide color gamut
◆ Fast response speed
◆ Thin and light in weight
◆ Power saving (PS) function
◆ Scan direction selection, up or down and right or left.
◆ Orbit supported

Mechanical Dimensions
