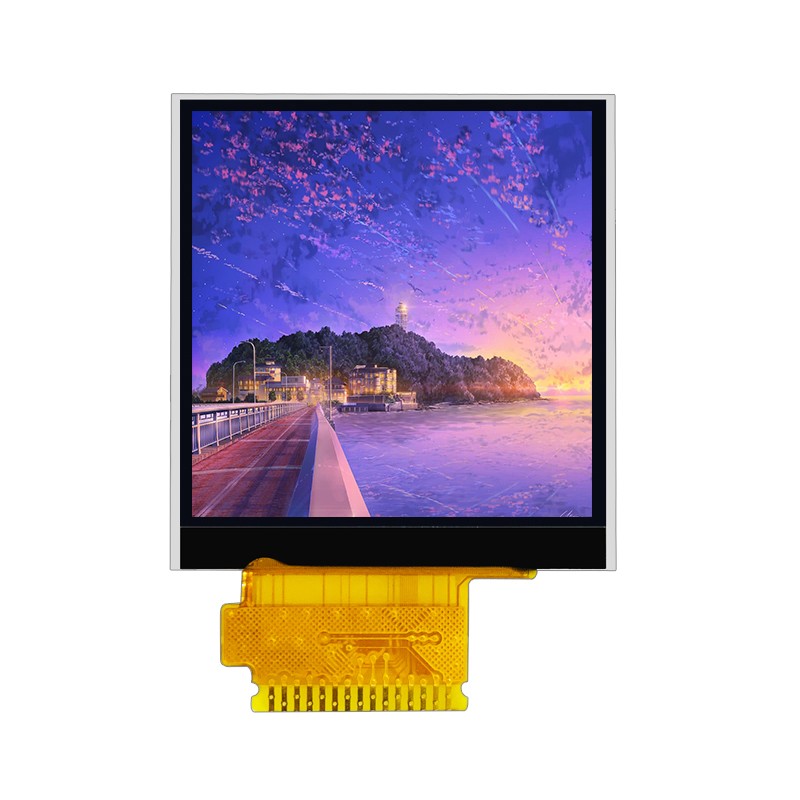

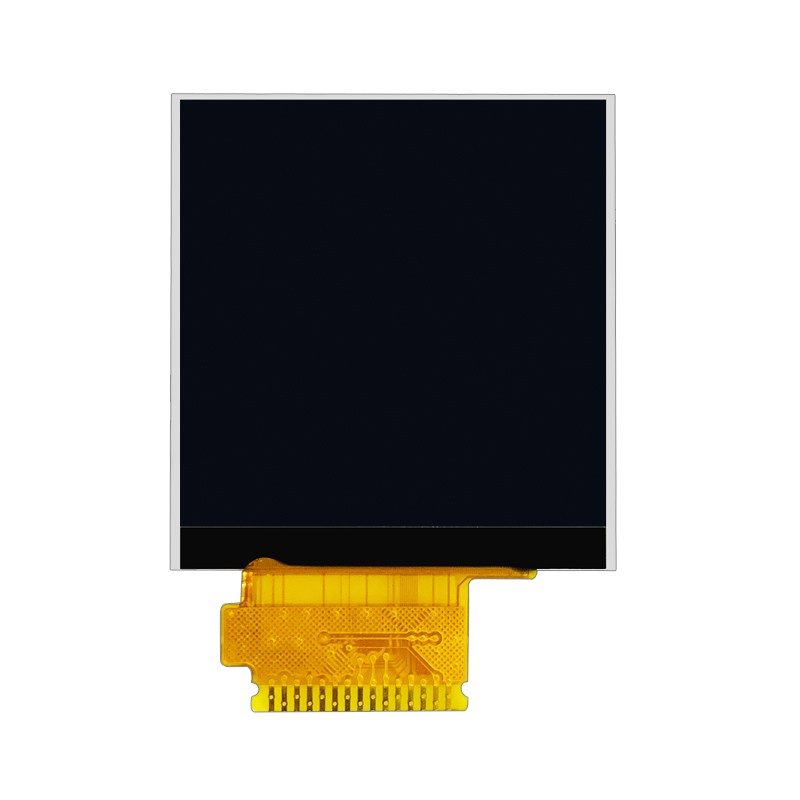

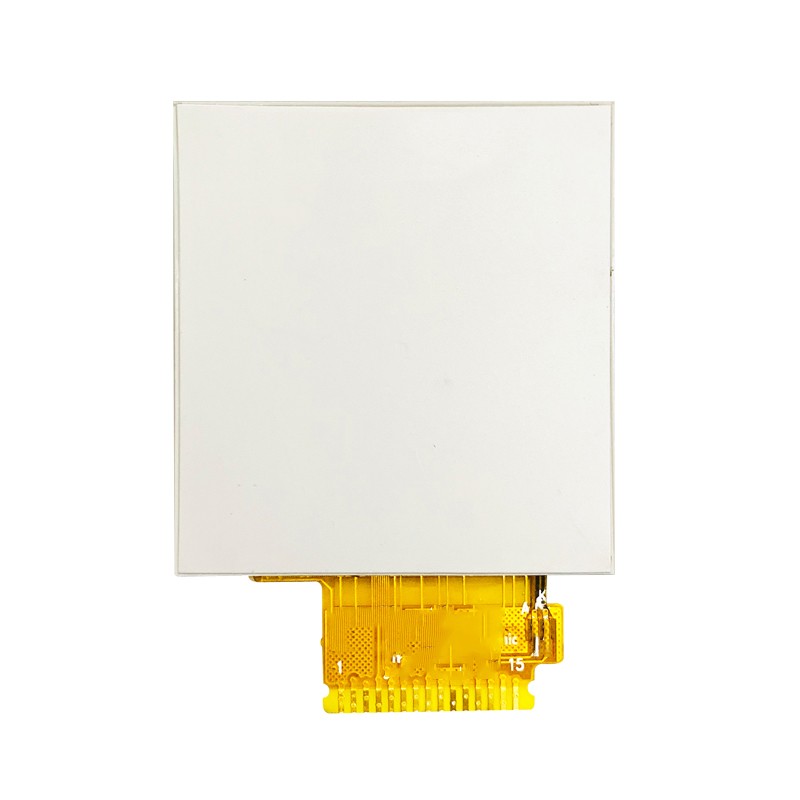

1.54 inch color 240x240 TFT IPS LCD Display Module

Description

This 1.54"TFT is a IPS Mini color TFT LCD display module is made of resolution 240 x RGBx240 pixels,with outline dimension of  31.52(W)x35.1(L)x1.72(T) mm and AA size 27.72×27.72 mm.this 1.54" TFT display builts in ST7789V Driver IC and supports SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution:240x(RGB)x240
• View Direction:ALL O'clock
• Display Color : RGB 262K
• Power Supply :2.4-3.3 V
• Interface : SPI
• Controller IC :ST7789
• Pin No: 15P Soldering
• Backlight:3 White LED in Parallel

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension : 31.52(W)x35.1(L)x1.72(T) mm
• Viewing Area :27.72×27.72 mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

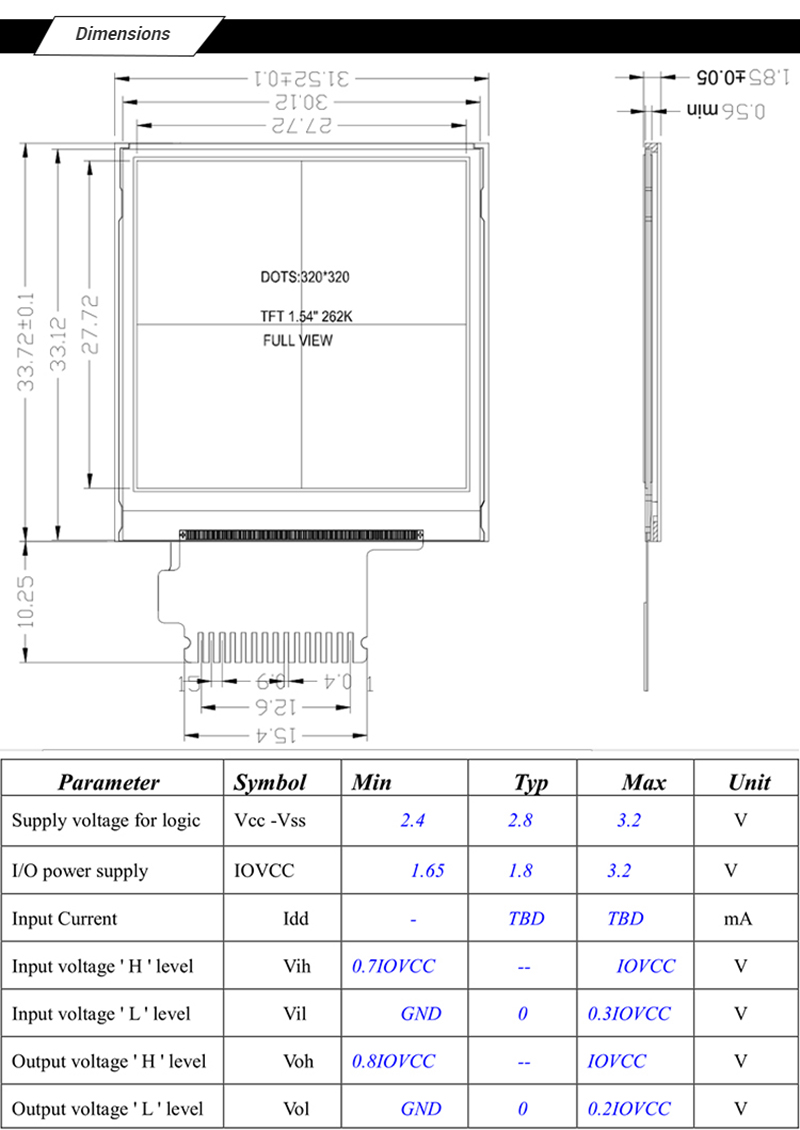

Dimensions

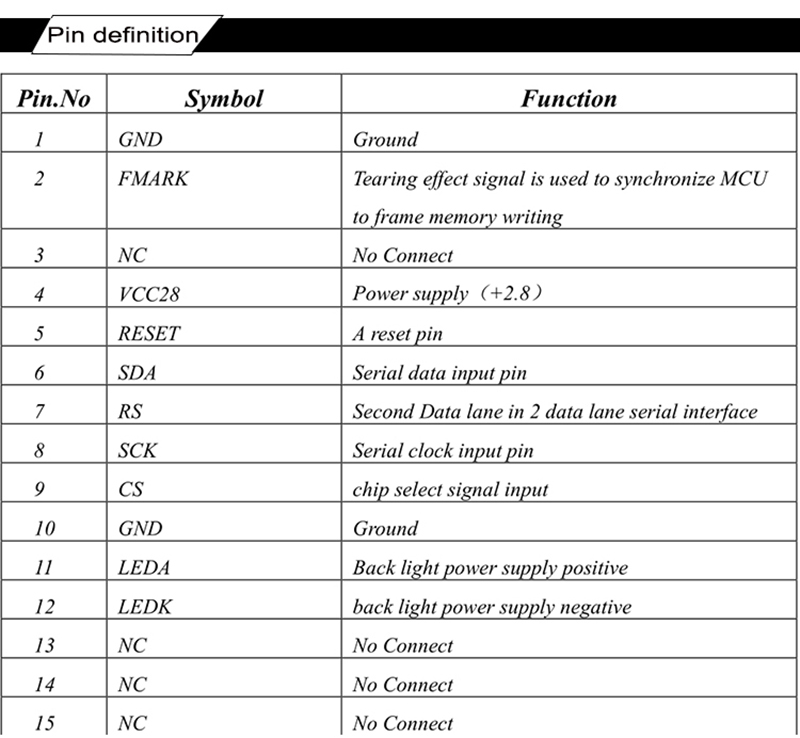

Pin Definitions
