Product Details

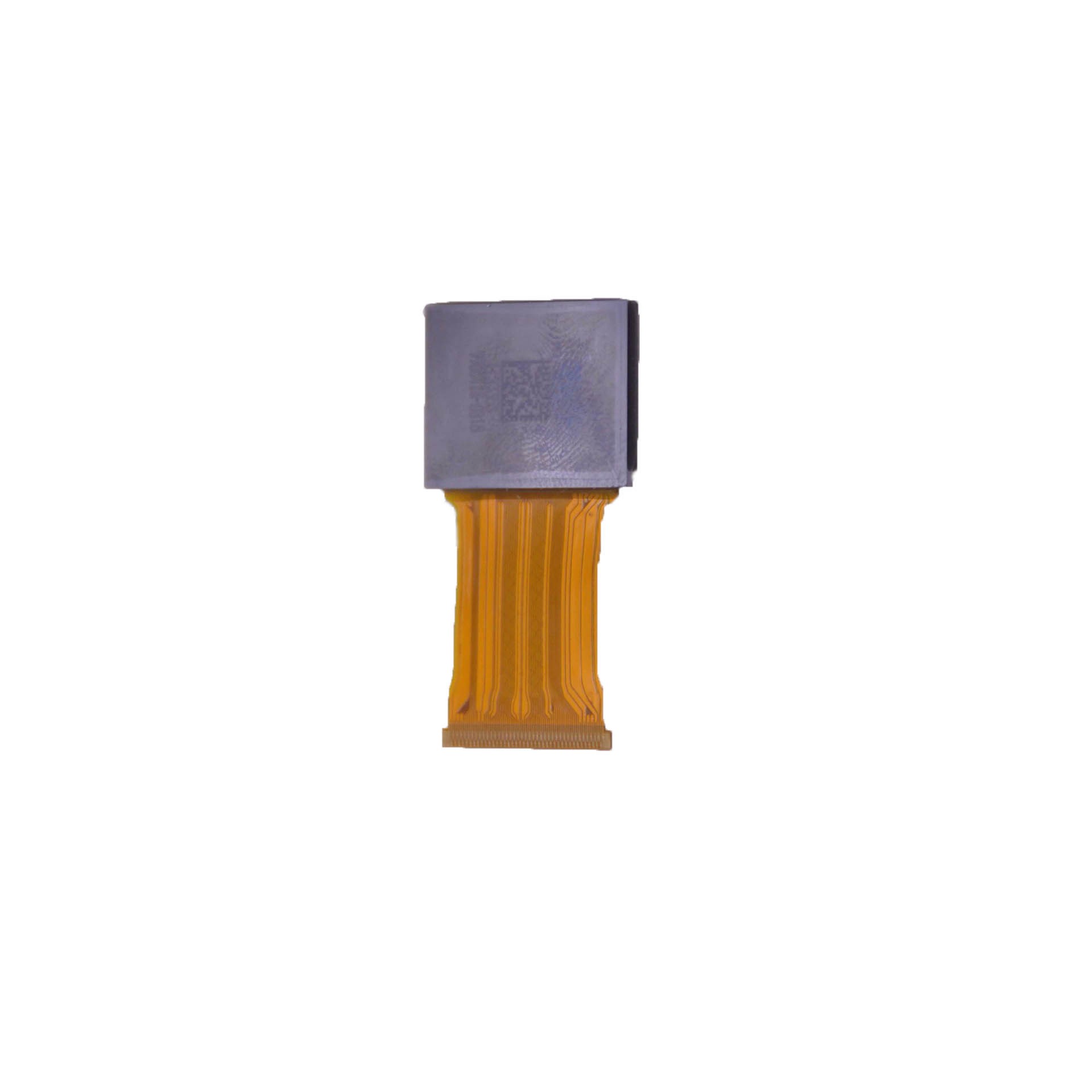

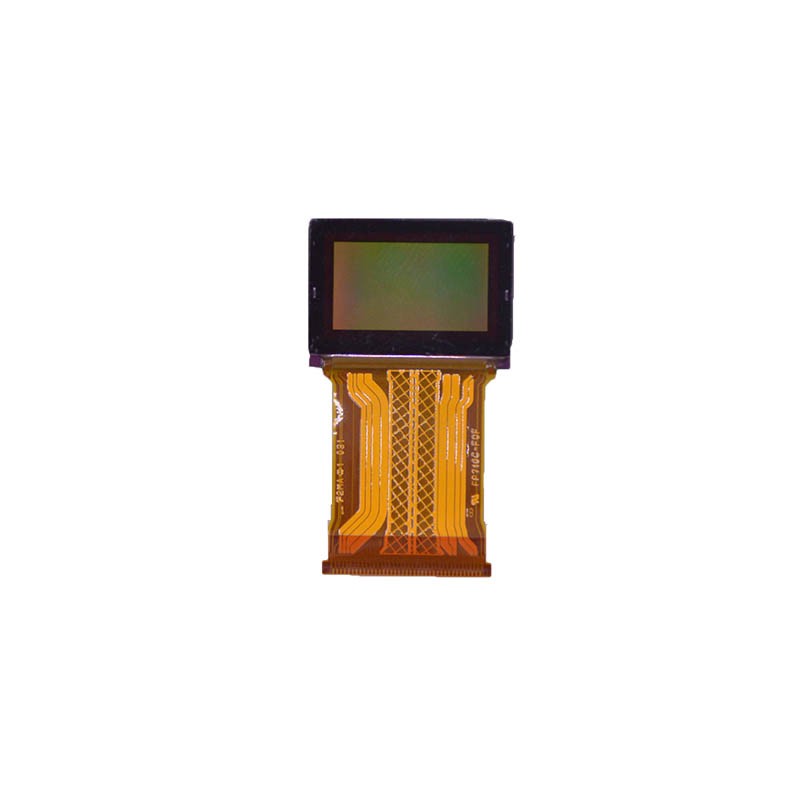

The 0.71" micro oled display is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.
0.71"1080P Micro oled display Parameter
◆Display Type:OLED Display
◆Display Size:0.71"
◆Display Color:Full color
◆Resolution: 1920(RGB) × 1080
◆Luminance:3000 cd/m² (Typ.)
◆Pin No:81Pins

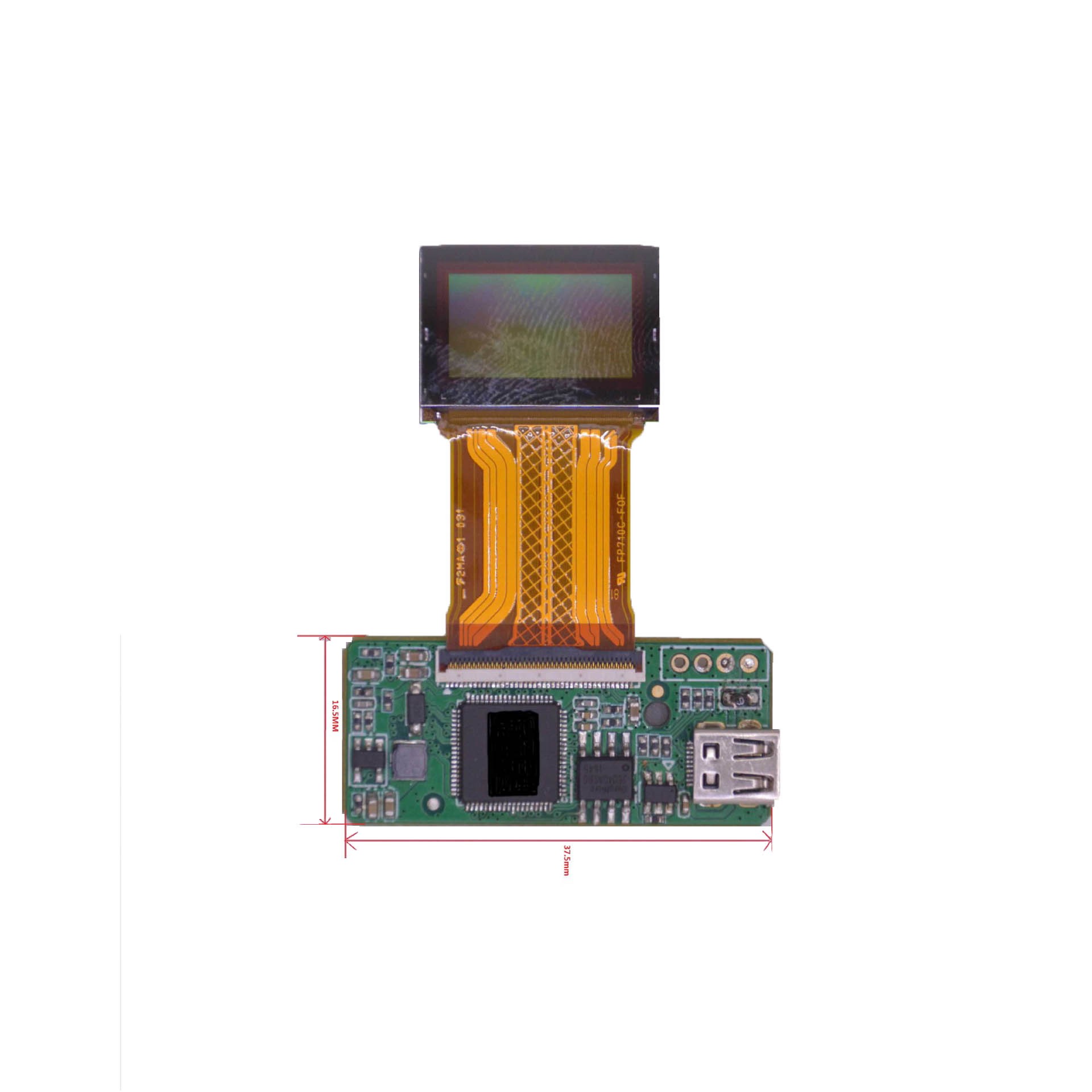

◆Driver Board: HDMI Port can run dual displays
◆Optics:Resin Optics / Free Form Surface Optics
◆Module Dimension:24.24(W)×15.62(H) ×1.54(D) (mm)
◆Operatingn Temperature : -10℃~70℃
◆Storage Temperature : -30℃~80℃
Applications:
◆ EVF (electronic viewfinders) for consumer cameras;
◆ AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
◆ Drones and FPV
◆ All types of scopes
◆ Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
◆ Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
◆ head mounted displays
◆ very small monitors,etc
0.71 inch micro display Features:
◆ Small size and high resolution type 0.70 display
◆ Effective dots: 1920 (RGB)×1080 = 6.22 M dots
◆ Ultra high contrast
◆ Wide color gamut
◆ Fast response speed
◆ Thin and light in weight
◆ Power saving (PS) function
◆ Scan direction selection, up or down and right or left.
◆ Orbit supported
Mechanical Dimensions
