Graphic LCD Module 240x64

Description

This 240x64 LCD Display is the graphic LCD display module which is made of 240x64 resolution,with the outline size 180 x 65.0 x 11.60 mm and active area size of 127.16 x 33.88 mm.This 240x64 graphic LCD display supports 8 bit Parallel and 5V power supply,it also Negative Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

• Resolution :240 X64 dots
• Display Mode : STN /Nositive /Transmissive/Blue
• Viewing Angles:6 O'clock
• Display Color : Blue
• Module Dimension :180 x 65.0 x 11.60 mm
• Viewing Area :127.16 x 33.88 mm
• Power Supply :5 V
• Interface : 8 bit Parallel
• Pin No: 14P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

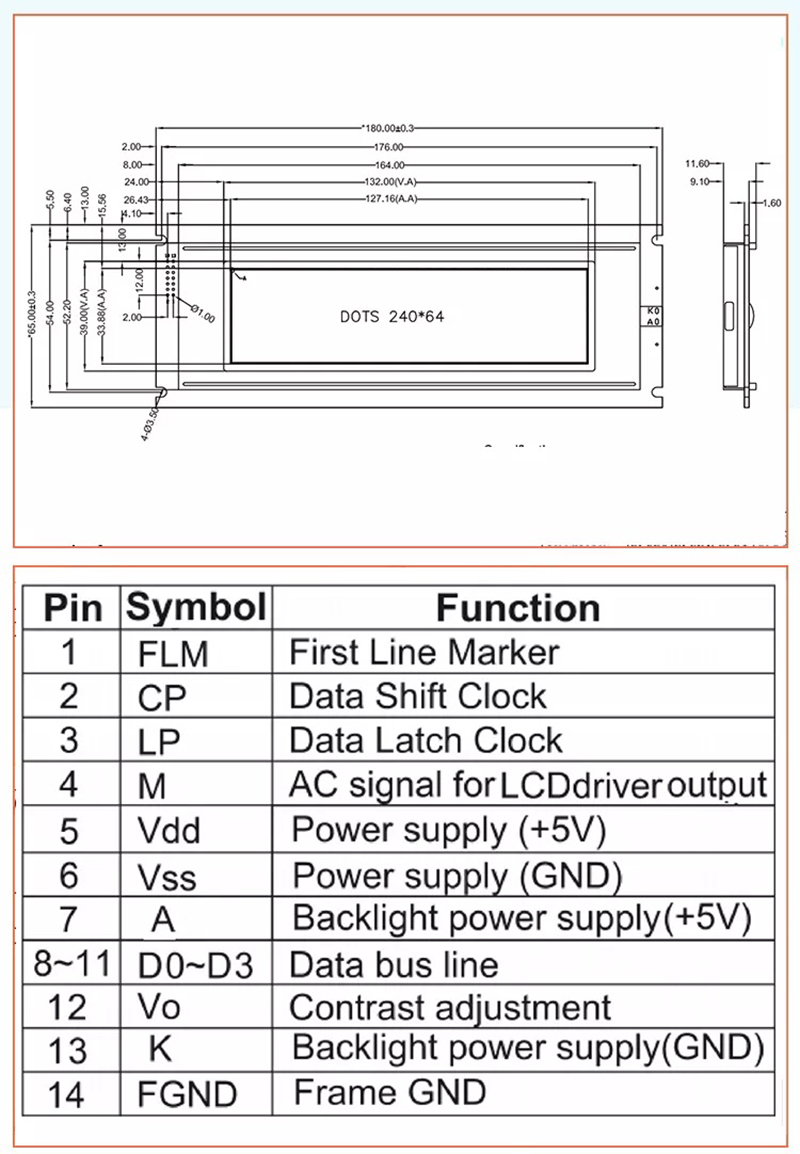

Dimensions
