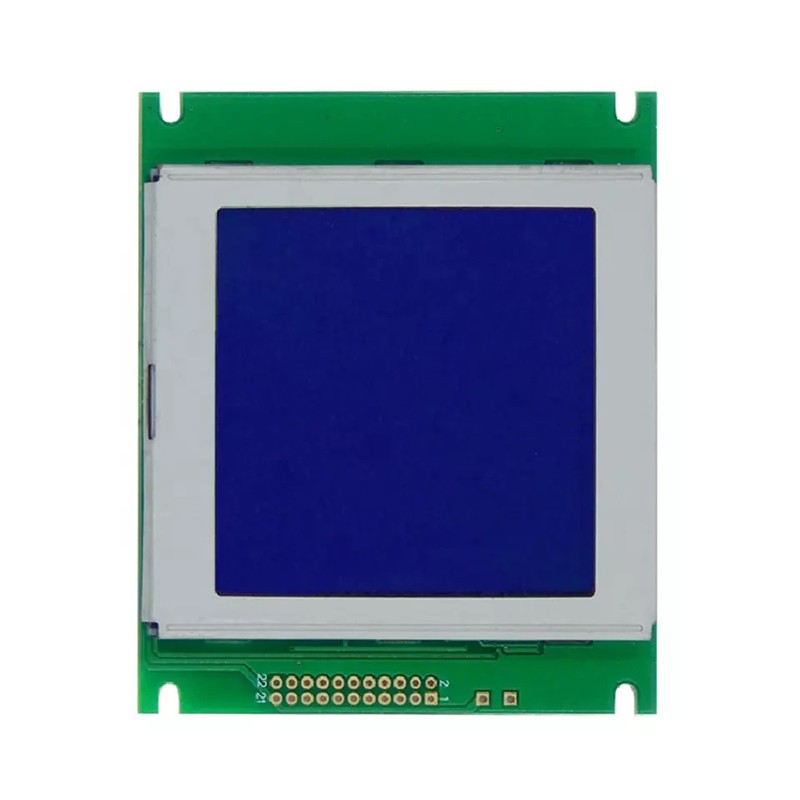

128x128 LCD Graphical Display Module

Description

This 128x128 LCD Display is the graphic LCD display module which is made of 128x128 resolution,with the outline size 85 x 100.0 x 12.0 mm and active area size of 62.00 x 62.00 mm.This 128x128 graphic LCD display supports 8 bit Parallel and 5V power supply,it also Negative Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

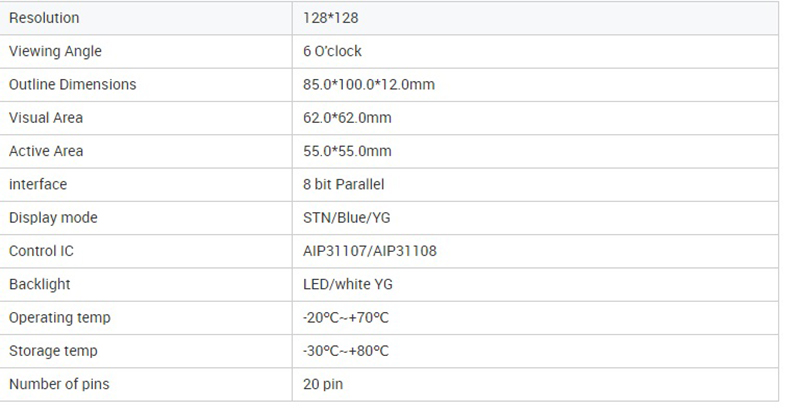

• Resolution :128x128 dots
• Display Mode : STN /Y-G /Blue
• Viewing Angles:6 O'clock
• Display Color : Blue
• Module Dimension :85 x 100.0 x 12.0 mm
• Viewing Area :62.00 x 62.00 mm
• Power Supply :5 V
• Interface : 8 bit Parallel
• Driver IC:AIP31107/AIP31108
• Pin No: 20P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

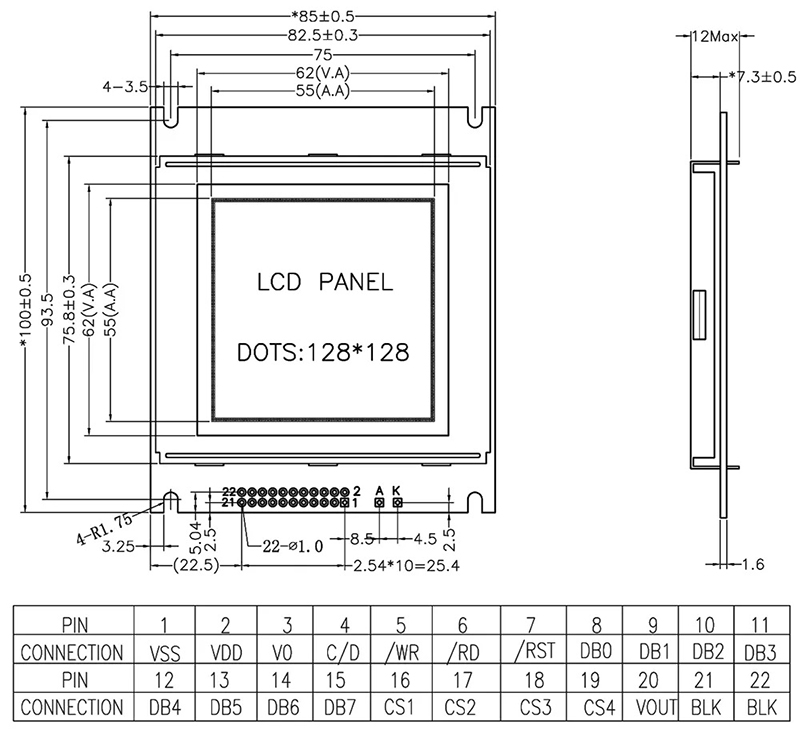

Dimensions
