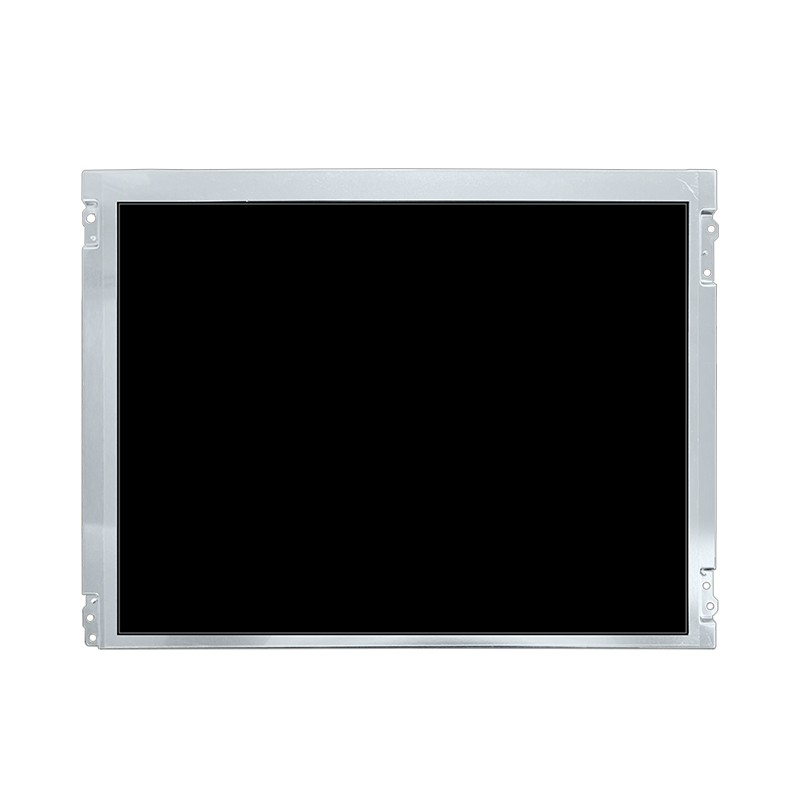

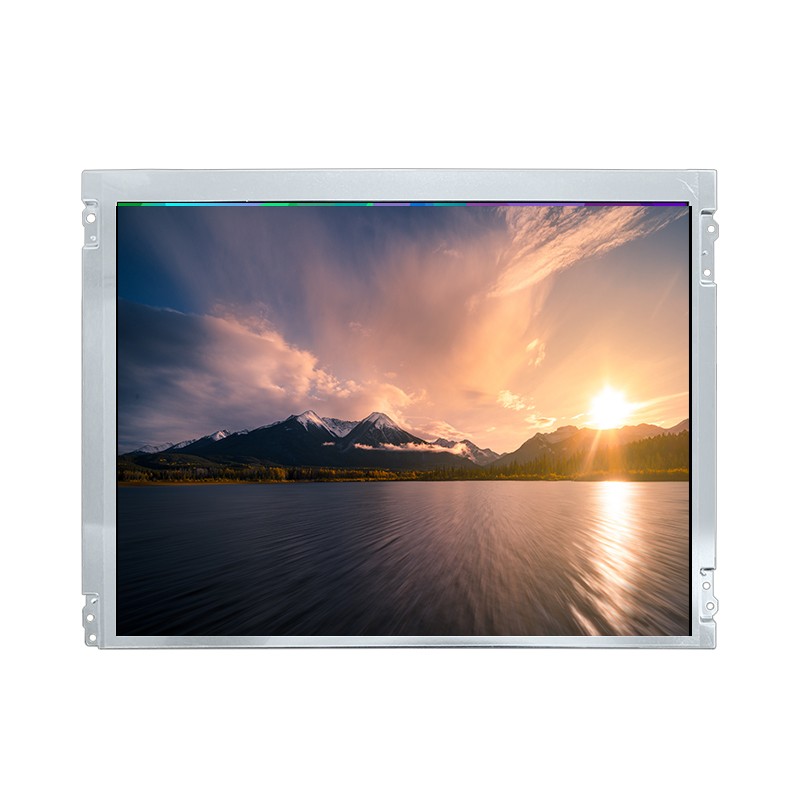

12.1 inch 800X600 TFT LCD Display Module touch screen

Description

This 12.1"TFT is a IPS Mini color TFT LCD display module is made of resolution 800x RGBx600 pixels,with outline dimension of 279.0 (H) ×209.0 (V) ×9.0 (D) mm and AA size 246.0 (H) × 184.5 (V) mm.this 12.1" TFT display supports LVDS interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:800x(RGB)x600
• View Direction:80°/ 80°/ 65°/ 75° (typ.)
• Display Color : RGB 16.7M
• Power Supply :3.0-3.6V
• Interface :LVDS
• Pin No: 20P
• Dot pitch:0.3075 (H) × 0.3075 (V) mm

• Contrast Ratio:700
• Luminance(cd/m2):450(TYP)

• Backlight: White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:279.0 (H) ×209.0 (V) ×9.0 (D) mm
• Viewing Area :246.0 (H) × 184.5 (V) mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -20℃~70℃

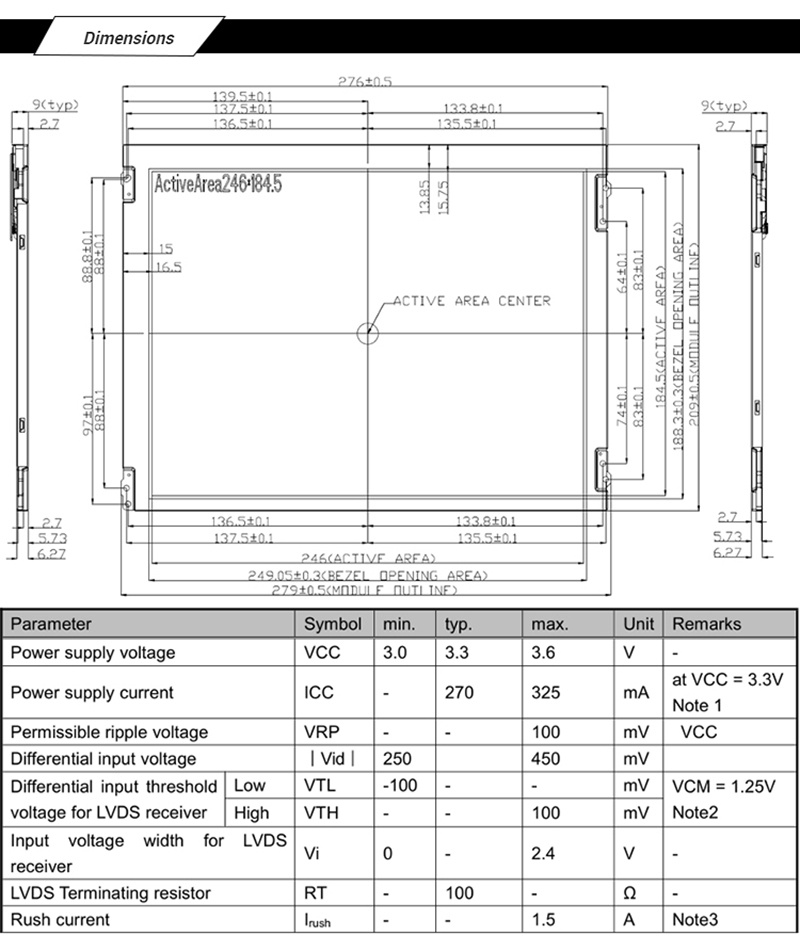

Dimensions

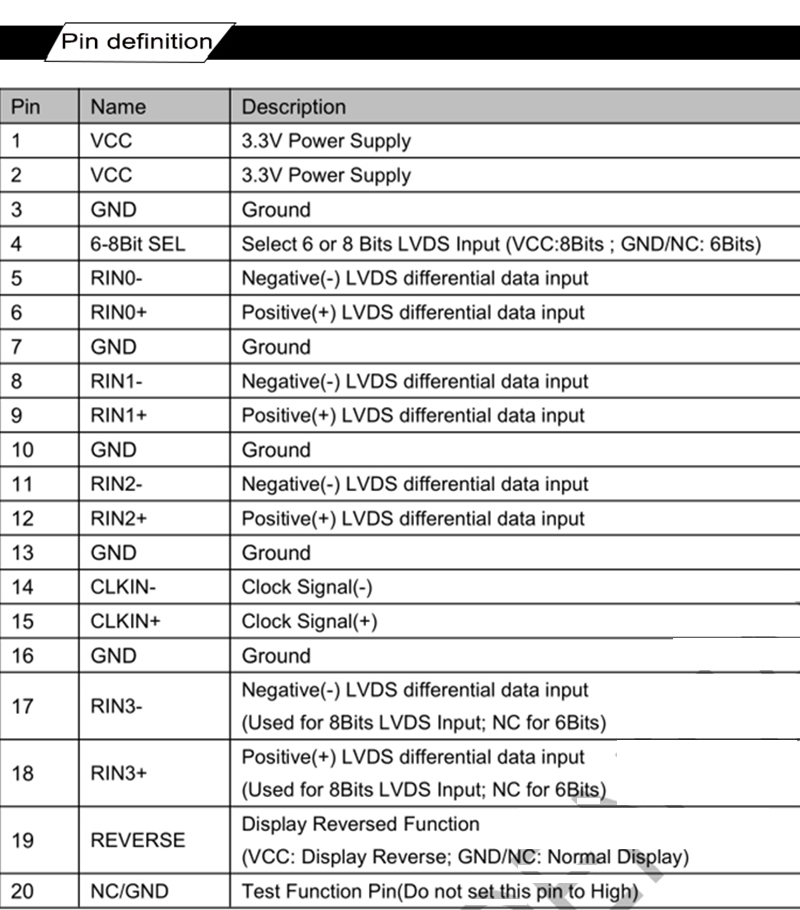

Pin Definitions
