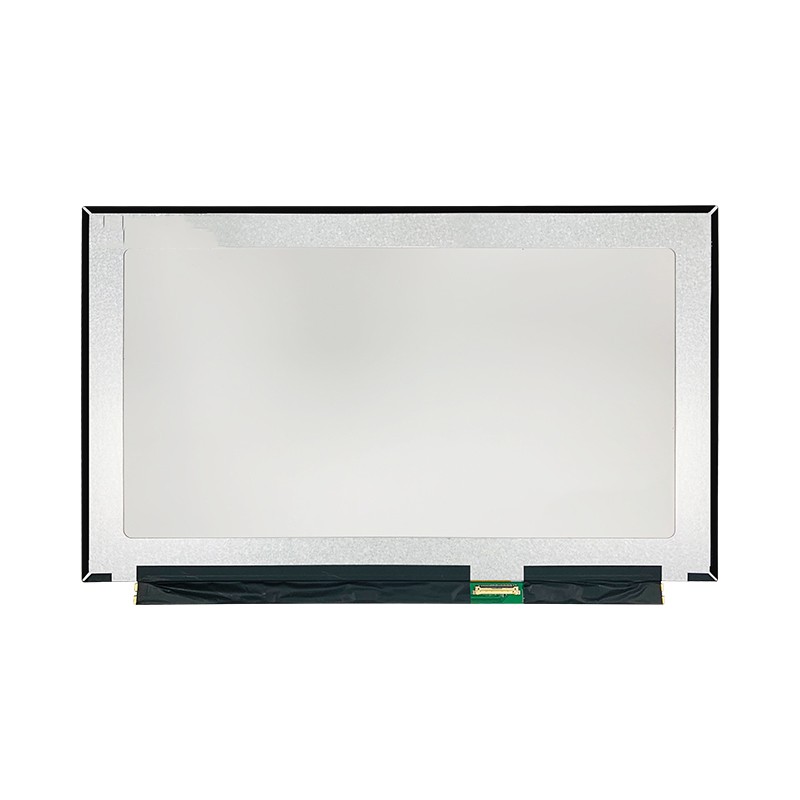

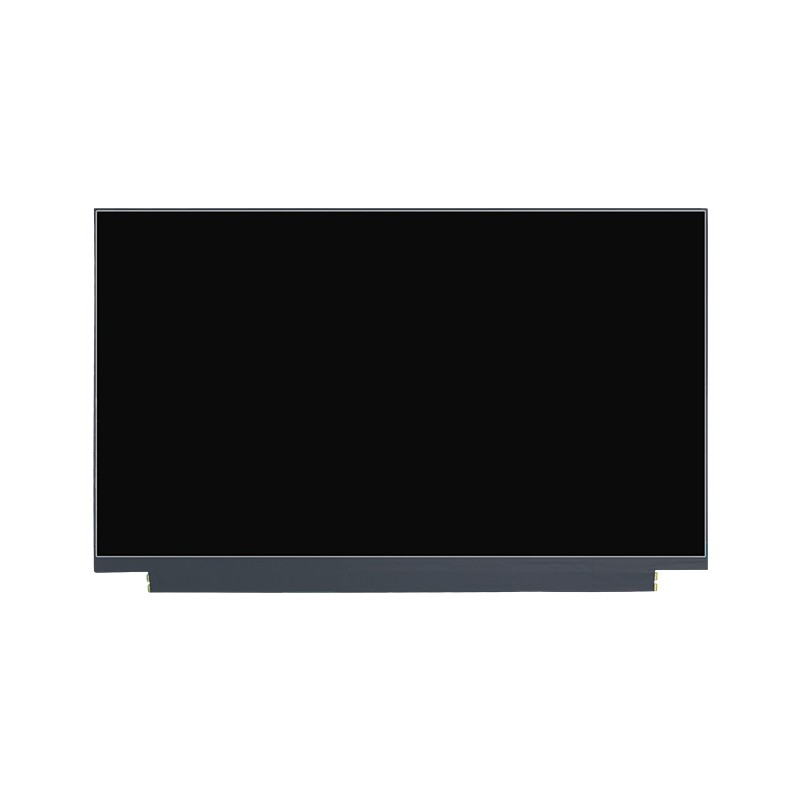

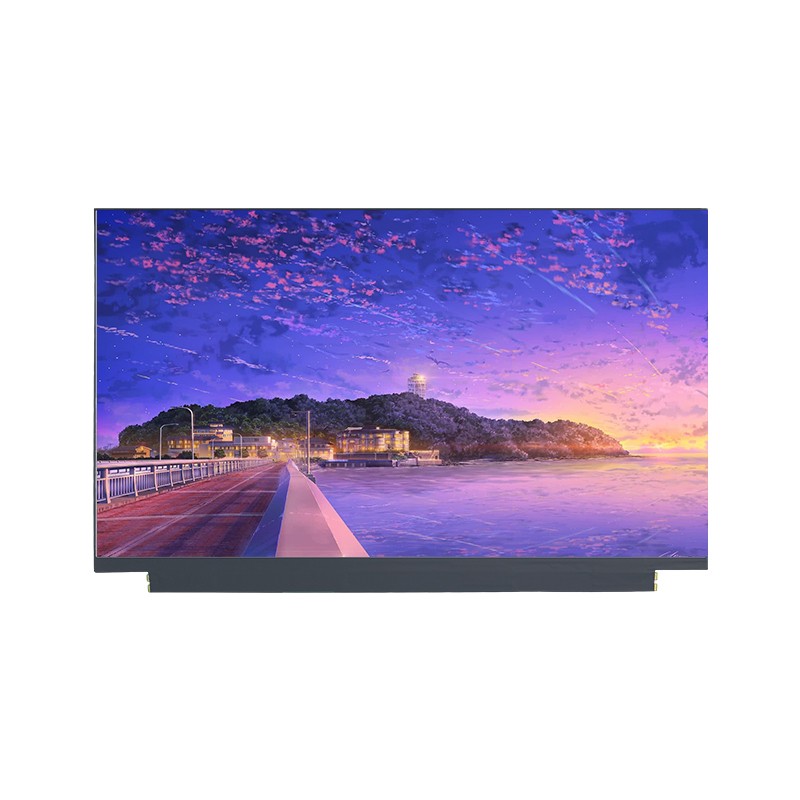

13.3 inch TFT LCD Screen 1366x768

Description

This 13.3"TFT is a IPS Mini color TFT LCD display module is made of resolution 1366x RGBx768 pixels,with outline dimension of 306.72(H)x189.2(V)x3.0(T)(max) mm and AA size 293.4168(H) × 164.9664 (V) mm.this 13.3" TFT display supports EDP interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:1366x(RGB)x768
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :3.0-3.6V
• Interface :EDP
• Pin No: 30P
• Backlight: White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:306.72(H)x189.2(V)x3.0(T)(max) mm
• Viewing Area :293.4168(H) × 164.9664 (V) mm
• Touch Screen:with
• Operation Temperature : -20℃~55℃
• Storage Temperature : -20℃~60℃

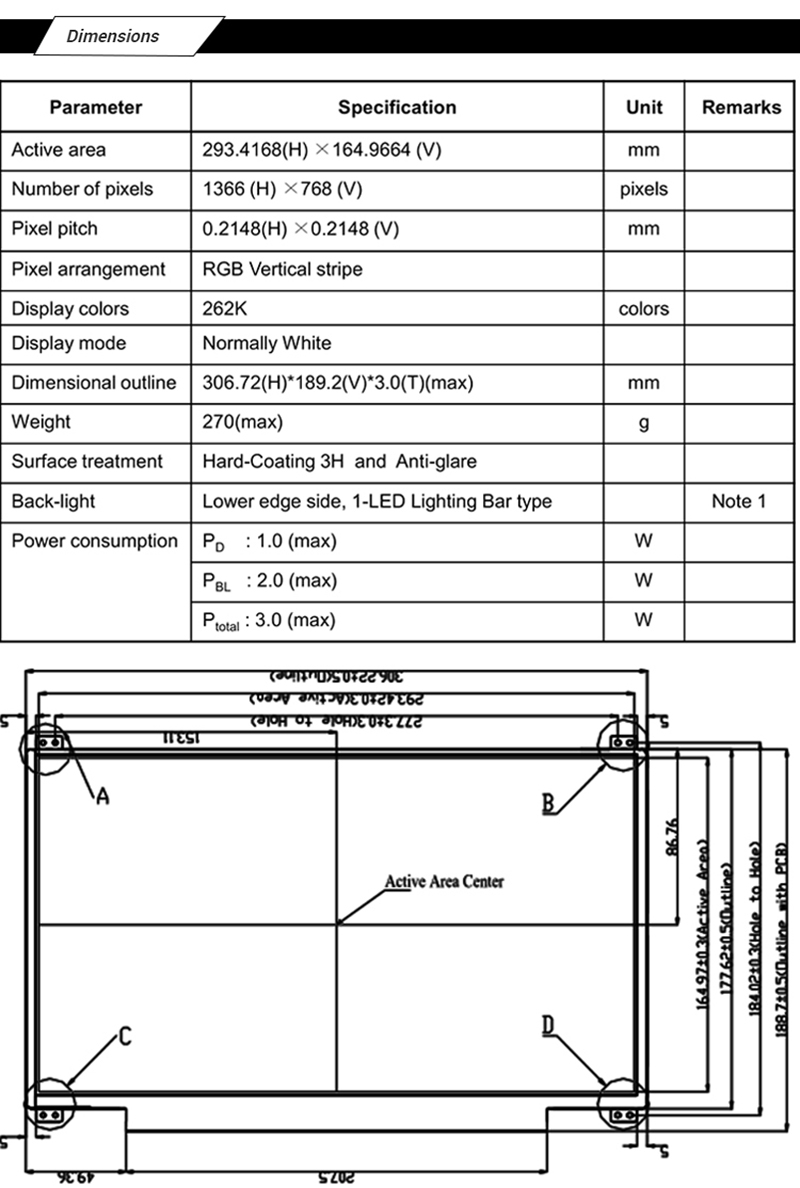

Dimensions

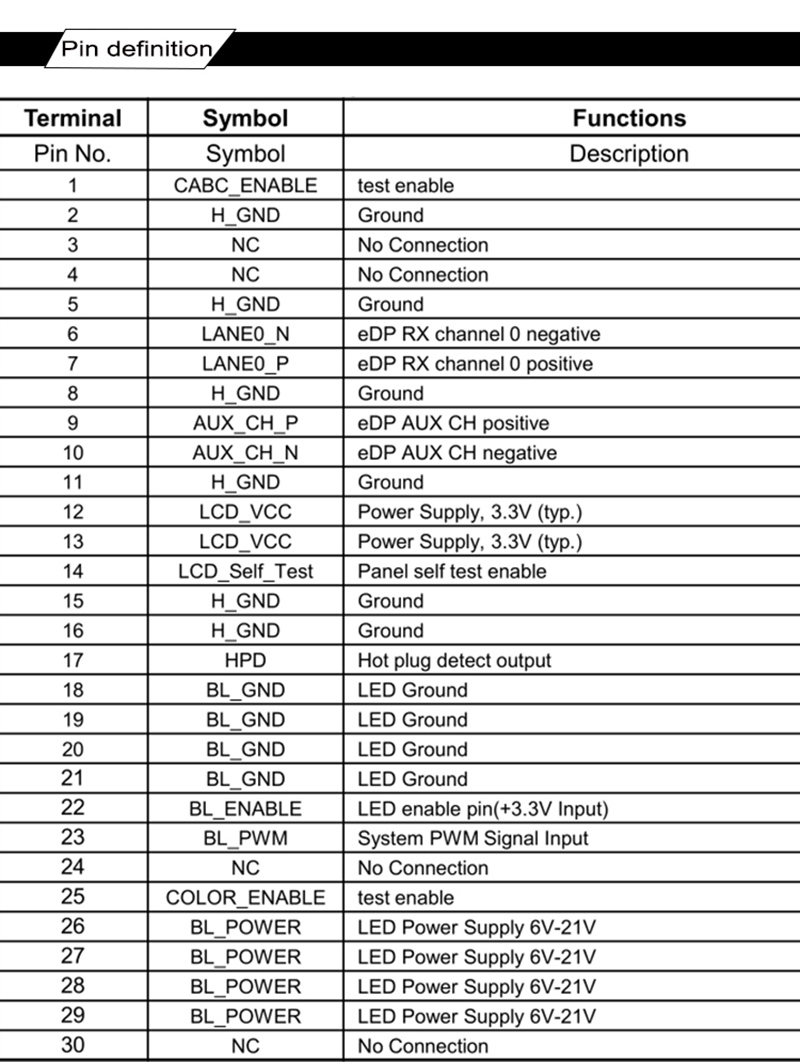

Pin Definitions
