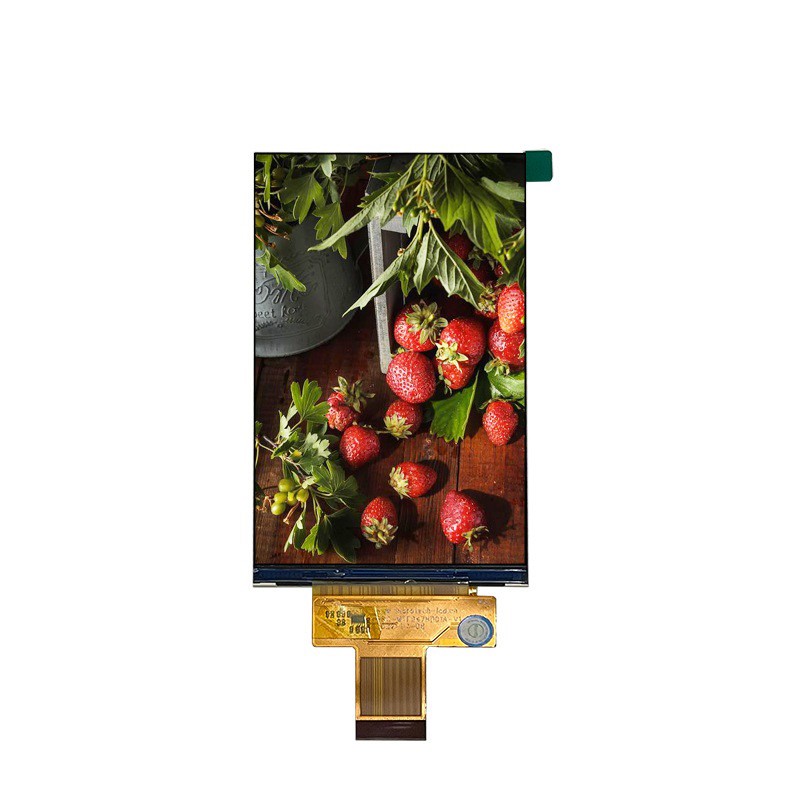

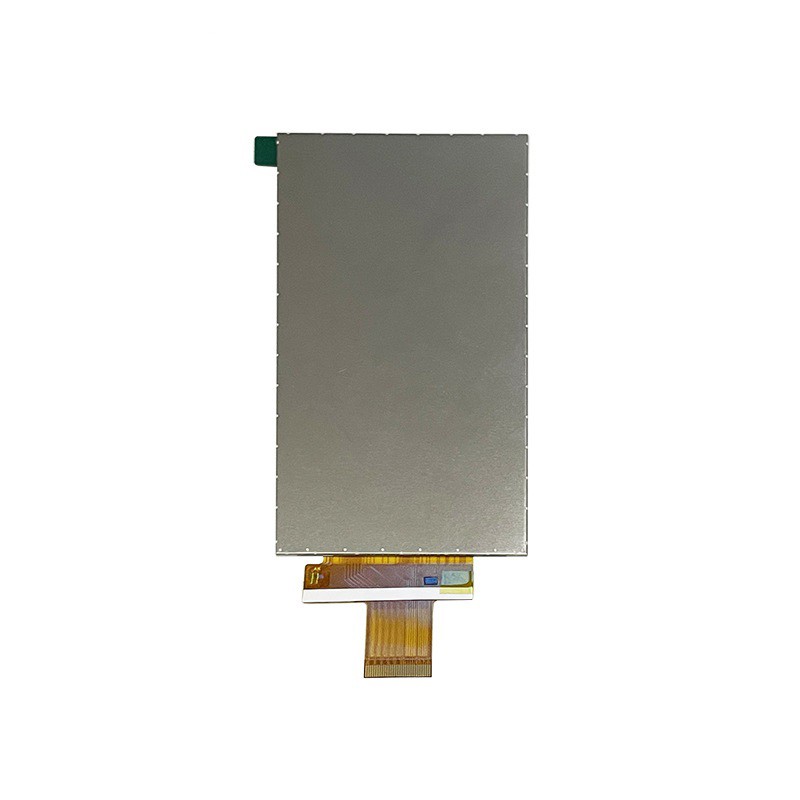

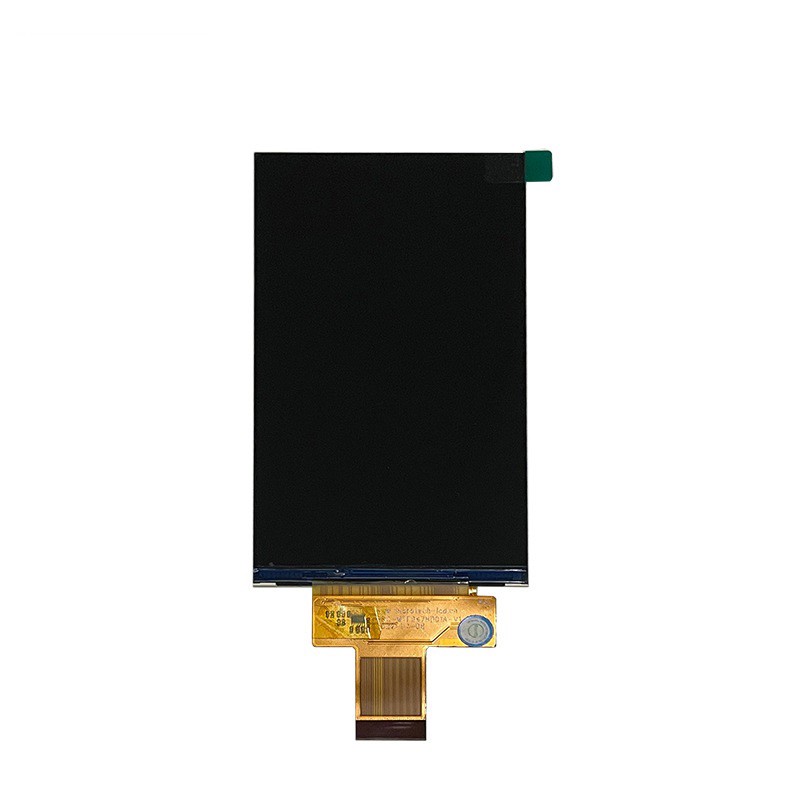

4.7 inch IPS TFT LCD module 720X1280 MIPI

Description

This 4.7"TFT is a IPS Mini color TFT LCD display module is made of resolution 800x RGBx480 pixels,with outline dimension of 60.5(W)×110.85(H)×1.65(D) mm and AA size 58.1(H)X103.3(V) mm.this 4.7" TFT display builts in ST7703D Driver IC and supports MIPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

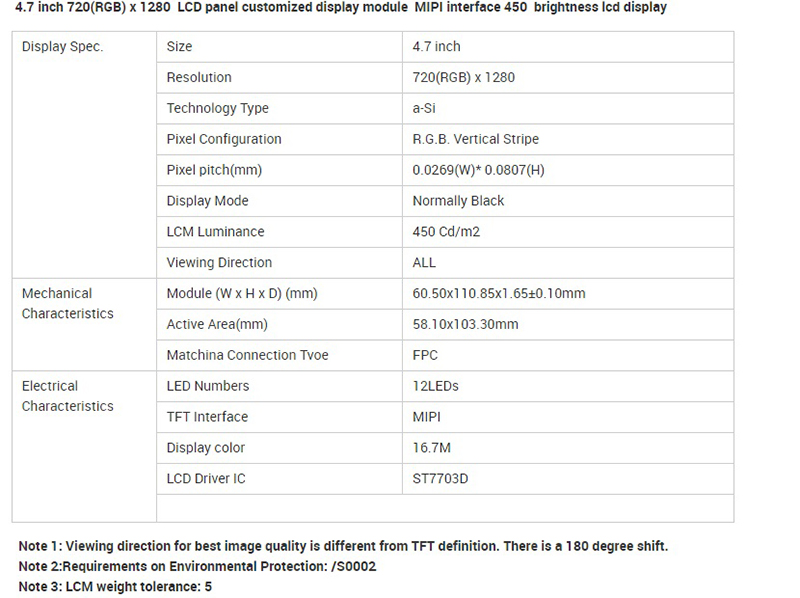

• Resolution:720x(RGB)x1280
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :4.85-5.15 V
• Interface :MIPI
• Driver IC:ST7703D
• Pin No: 30P Connector
• Dot pitch:0.0269(H) x 0.0807(V) mm

• Luminance(cd/m2):450 (TYP)

• Backlight:12 White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:60.5(W)×110.85(H)×1.65(D) mm
• Viewing Area :58.1(H)X103.3(V)mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

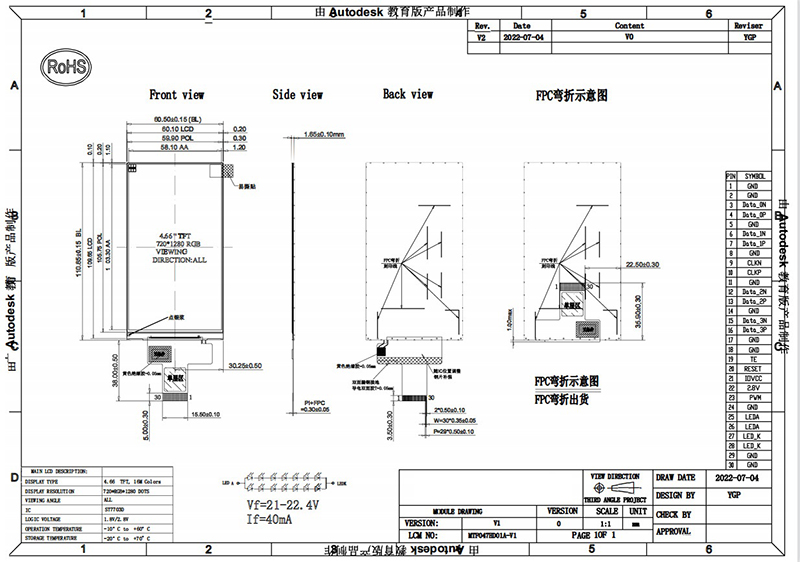

Dimensions
