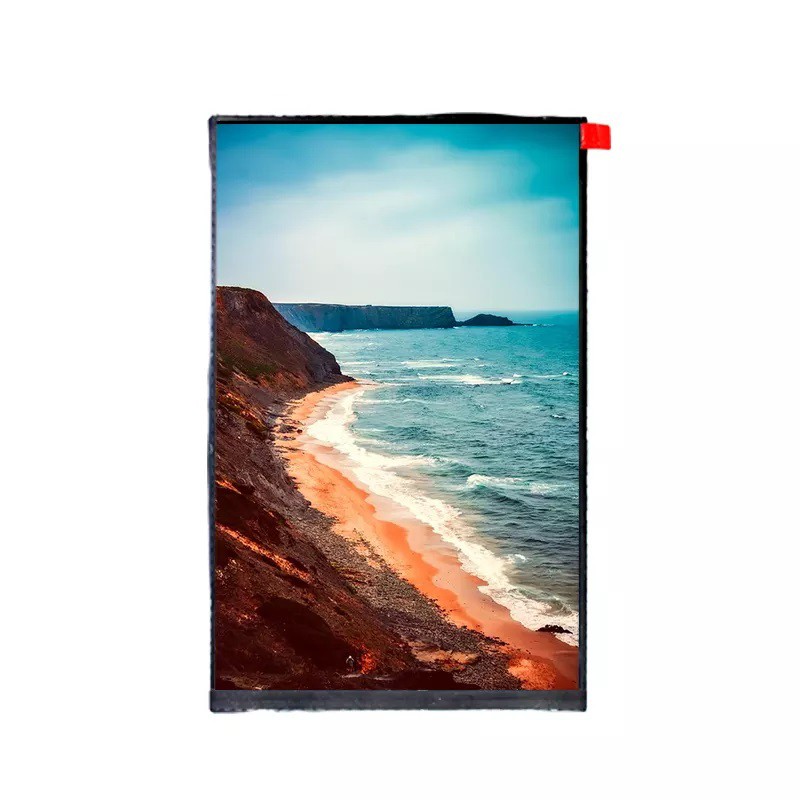

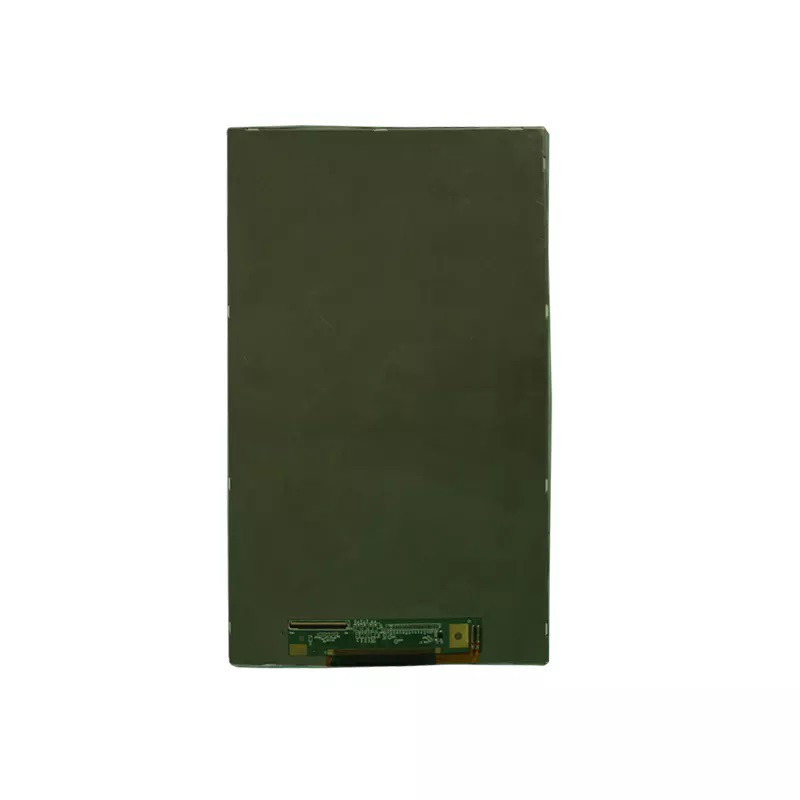

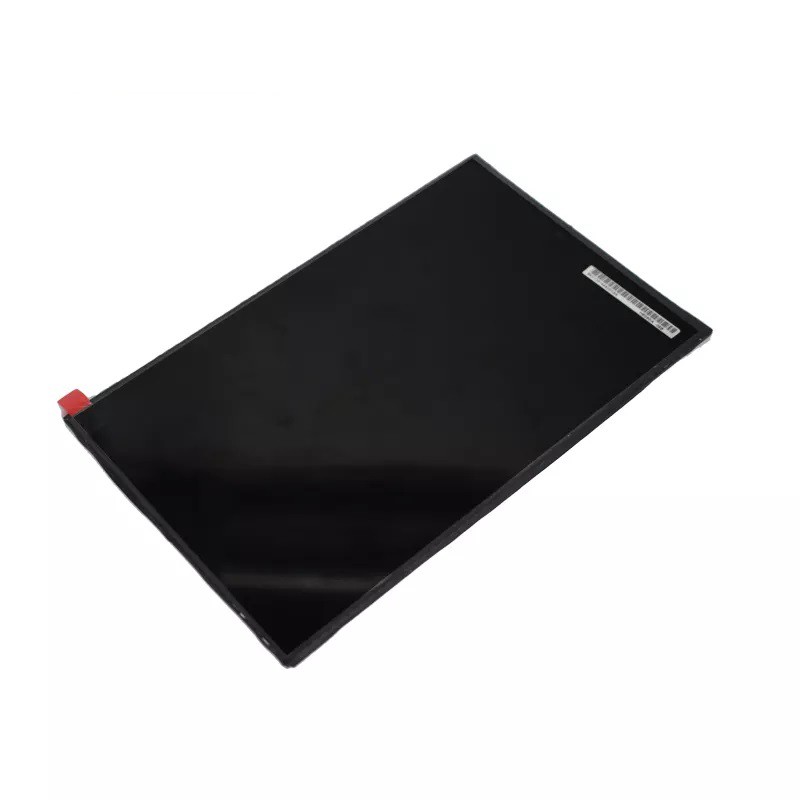

8 inch TFT LCD Display Screen Module 800x1280

Description

This 8"TFT is a IPS Mini color TFT LCD display module is made of resolution 800x RGBx1280 pixels,with outline dimension of 114.68(W)×184.10(H)×2.50(D) mm and AA size 107.64(H)X172.22(V) mm.this 8" TFT display supports MIPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:800x(RGB)x1280
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :4.85-5.15 V
• Interface :MIPI
• Pin No: 31P
• Backlight:20 White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:114.68(W)×184.10(H)×2.50(D) mm
• Viewing Area :107.64(H)X172.22(V) mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -20℃~70℃

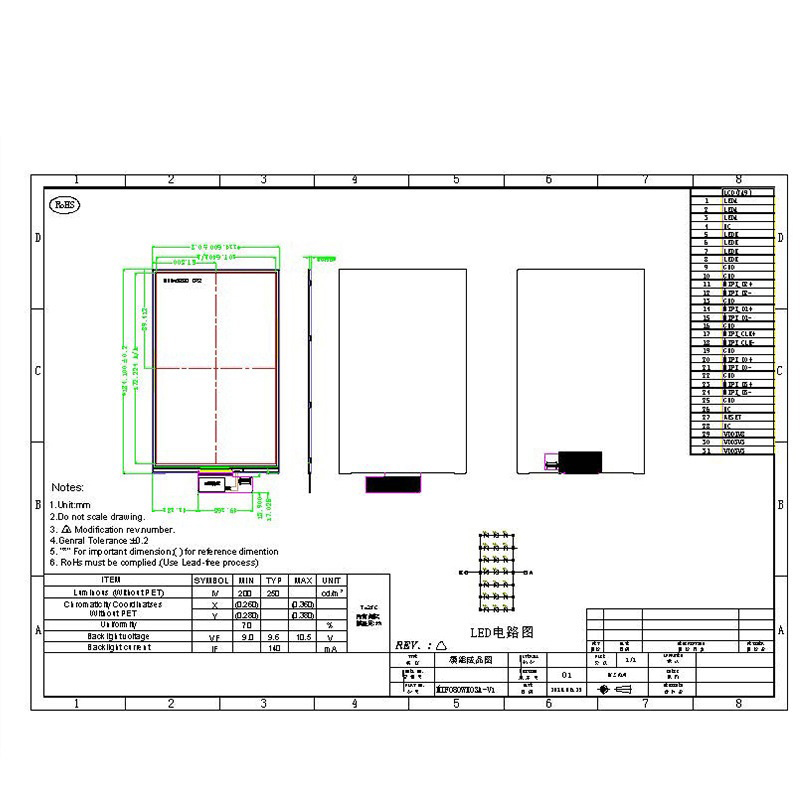

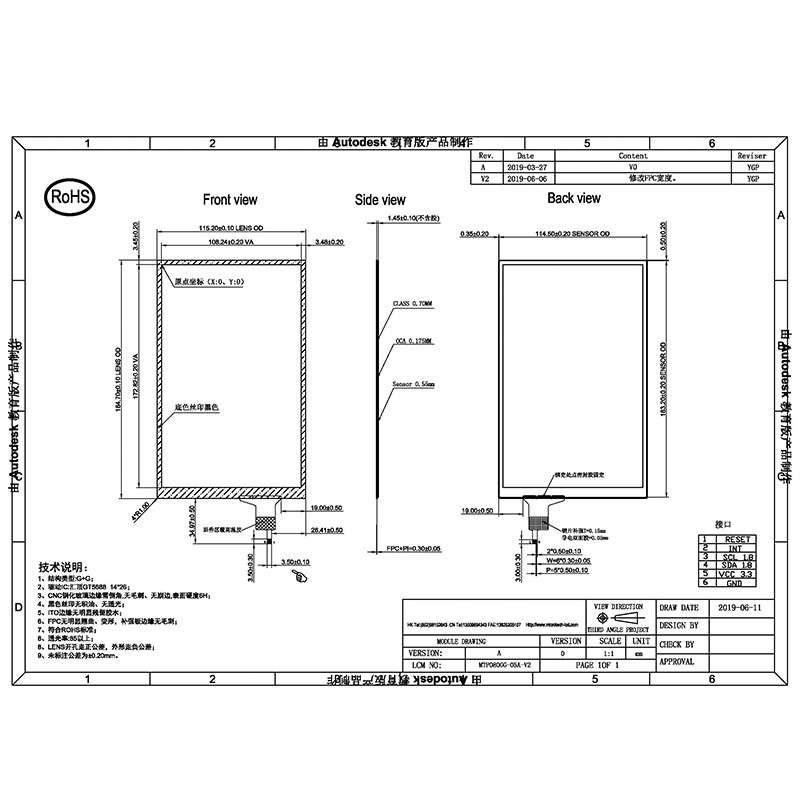

Dimensions
