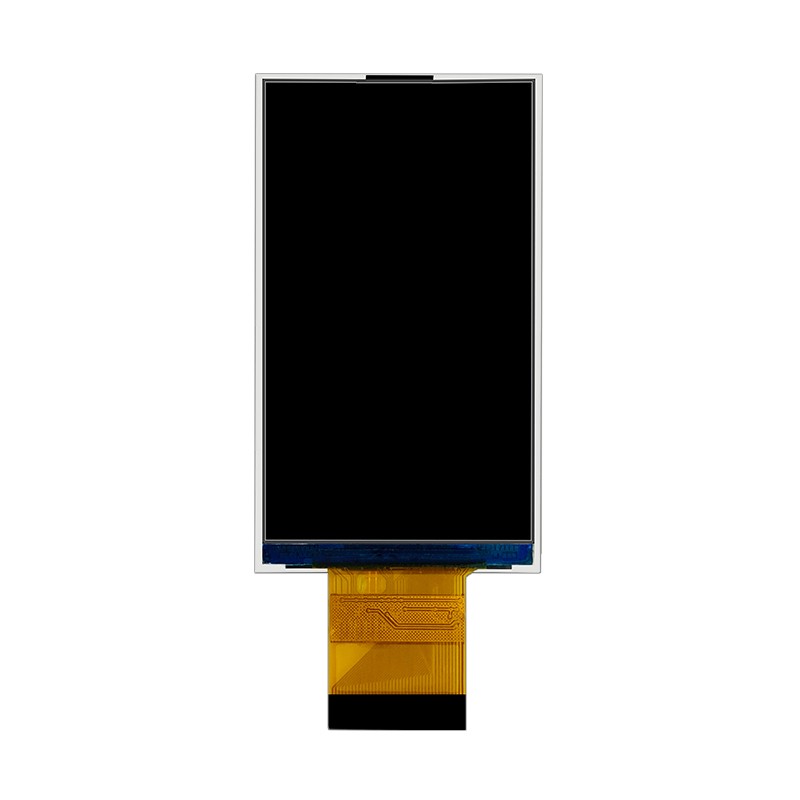

2.95 inch Full Color TFT LCD Display 360x640 MIPI RGB Interface

Description

This 2.95"TFT is a IPS Mini color TFT LCD display module is made of resolution 960x RGBx240 pixels,with outline dimension of 43.04(W)X74.91(H)X2.6(T) mm and AA size 36.72(W)X65.28(H) mm.this 2.95" TFT display builts in ST7701S controller IC and supports MIPI  / RGB interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:360x(RGB)x640
• Display Color : RGB 262K
• Power Supply :2.5-3.3 V
• Interface : MIPI  / RGB
• Driver IC:ST7701S
• Pin No: 40P Connector
• Dot pitch:0.102(W)X0.102(V)mm

• Backlight:White LEDS

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:43.04(W)X74.91(H)X2.6(T) mm
• Viewing Area :36.72(W)X65.28(H)mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

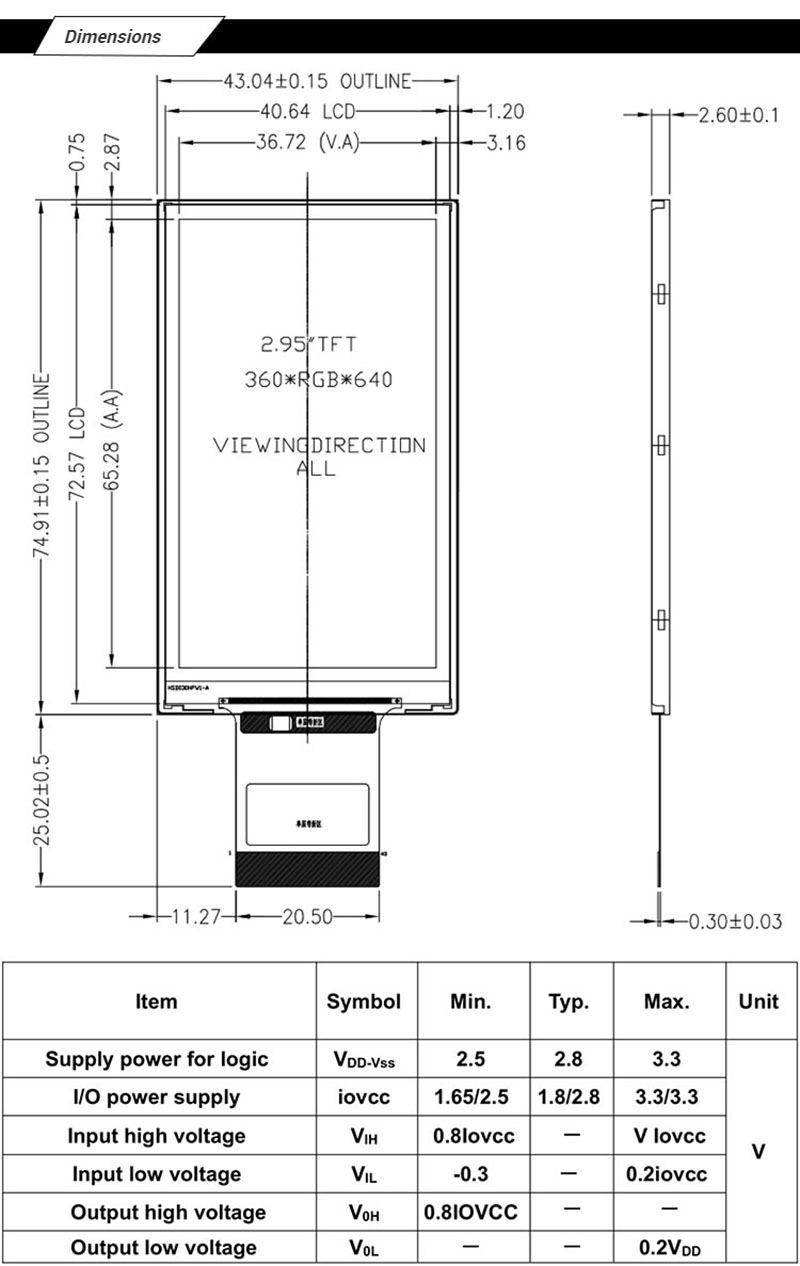

Dimensions

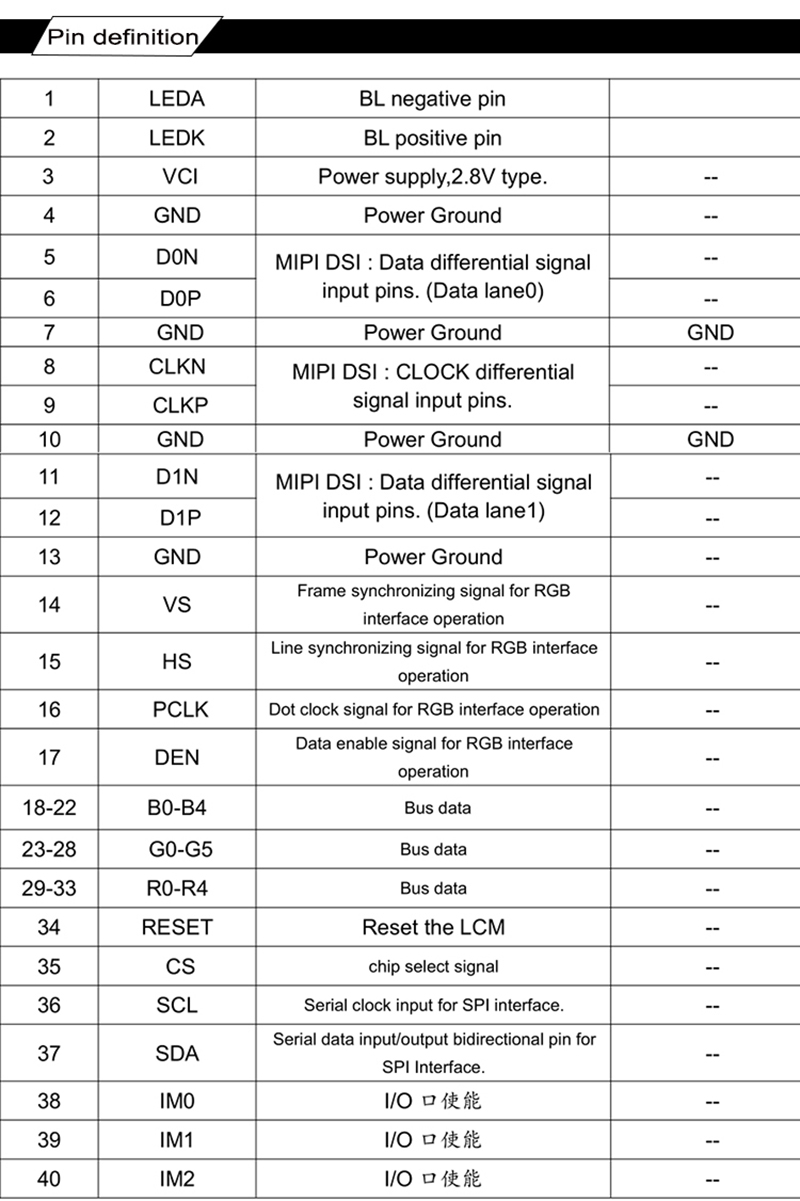

Pin Definitions
