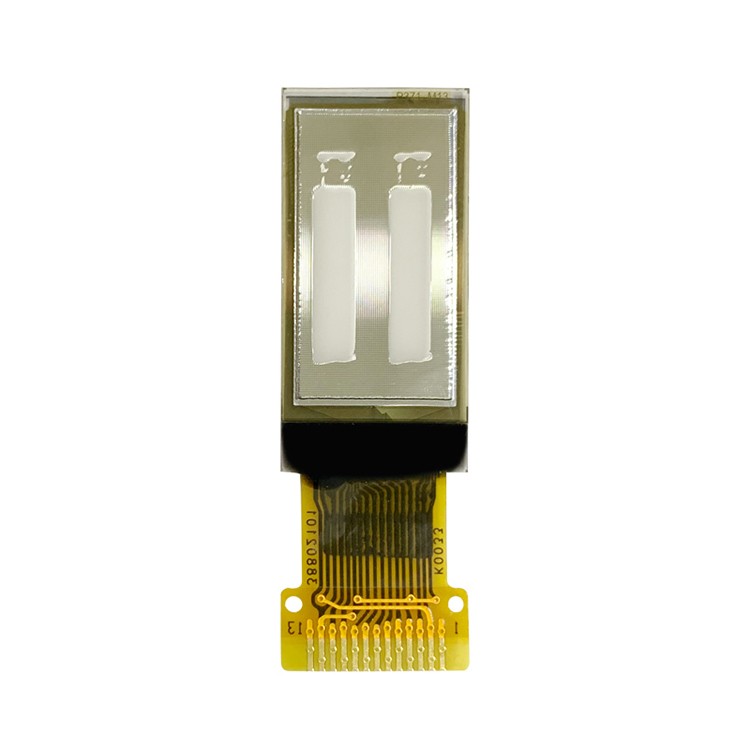

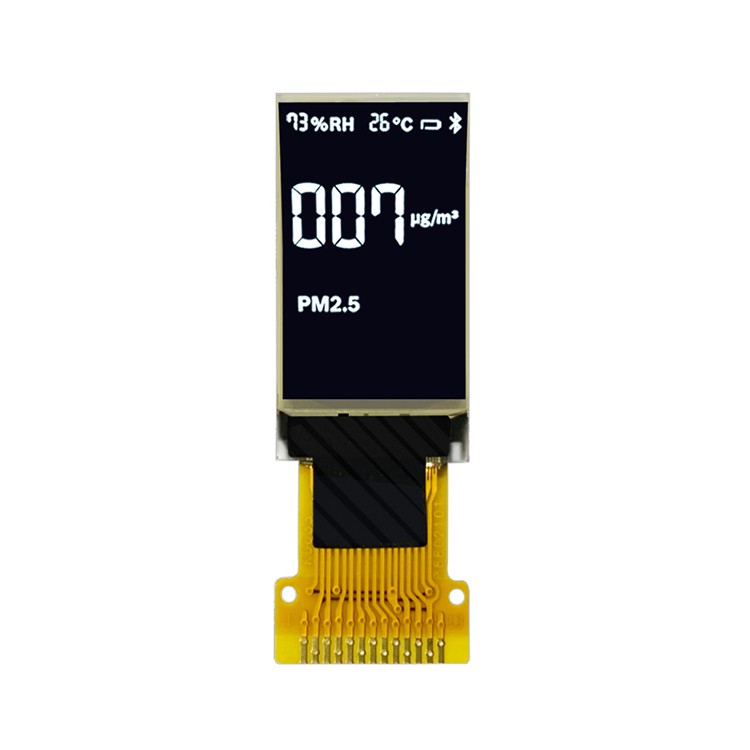

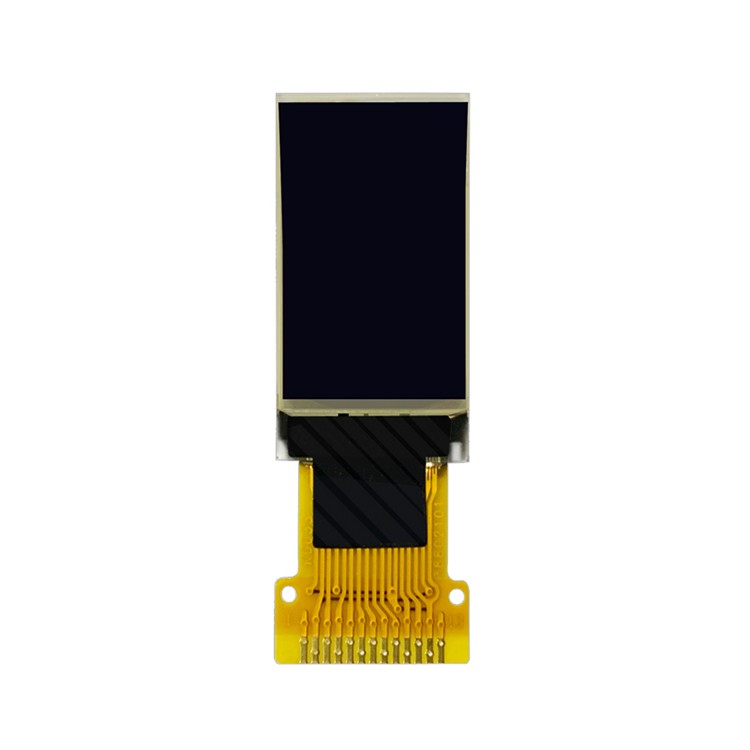

0.78 inch 80x128 OLED Micro Display

Description

This 0.78" OLED is a Mini graphic OLED display module which is made of 80X128 pixels white OLED,it is with outline dimension of 25.275× 28.50 mm and AA size 9.68 × 17.26 mm, it builts in SH1107 controller ic,communicates via 4-wire serial interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

The FFC is the soldering types,no need connectors.Just soldering the FPC on your own PCB directly.

Specifications

• Resolution : 80X128 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White)
• Module Dimension : 25.275 x 28.50 x 1.227 mm
• Viewing Area : 9.68 X 17.26 mm
• Power Supply :1.65-3.5 V
• Interface :I2C
• Controller IC : SH1107
• Pin No: 13P Sodering
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

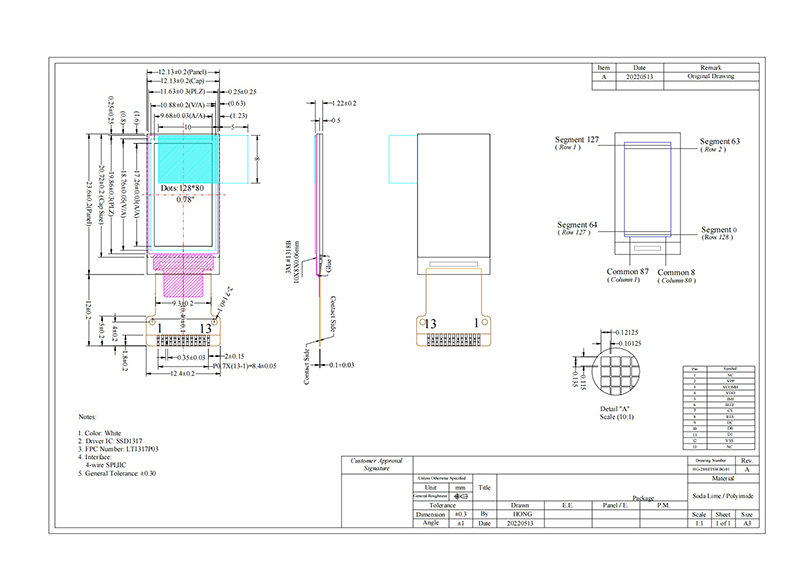

Dimensions

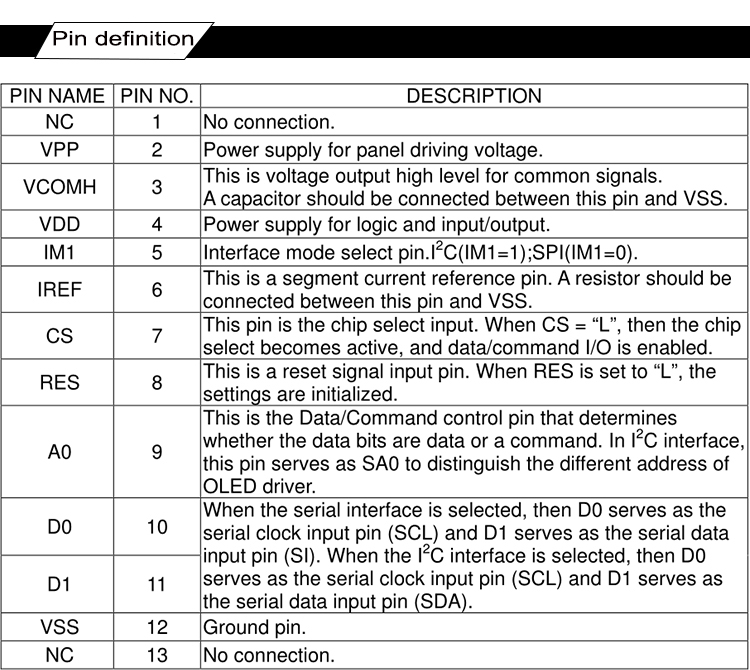

Pin Definitions
